UHF RFID 915MHz Security Card

UHF RFID 915MHz Security Card

ISO 18000-6C (EPC Gen 2) is a more modern, efficient, and widely used standard compared to ISO 18000-6B. While 6B is still utilized in some industrial applications, 6C dominates in retail, logistics, and supply chain management due to its speed, cost-effectiveness, and compatibility.

Main Benefits of ISO 18000-6C:

1. Higher Speed and Efficiency – Faster data transmission and advanced anti-collision mechanisms allow thousands of tags to be read in a short period.

2. Lower Costs – Due to widespread adoption and mass production, 6C standard tags are cheaper than 6B.

3. Enhanced Security – Supports advanced security features, such as access passwords and "kill" tag deactivation.

4. Greater Compatibility – ISO 18000-6C is the foundation of the EPC Gen 2 standard, which is globally used in retail, logistics, and supply chains.

5. Widespread Use – Due to its efficiency and lower costs, 6C is the dominant standard in areas such as retail (e.g. Walmart, Amazon), logistics, automotive industry, and asset tracking.

6. Longer Reading Range – Optimized for long-range applications, ideal for warehouse management and inventory control.

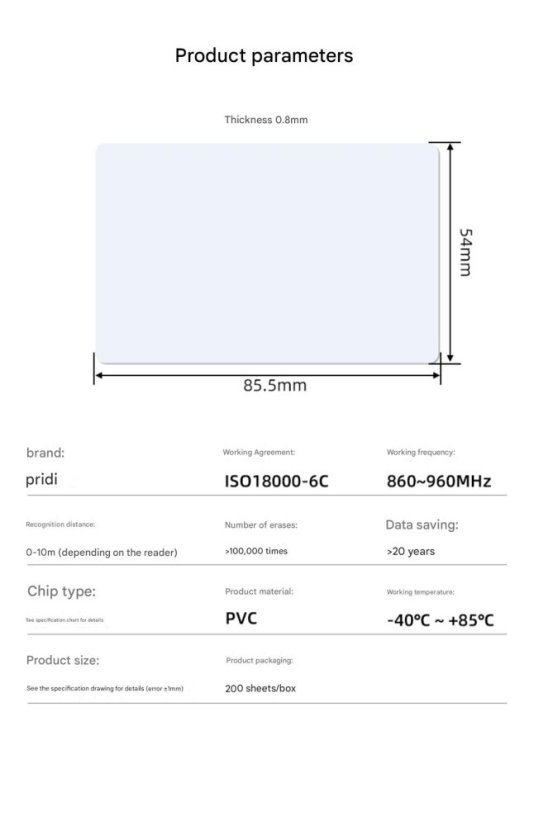

Specifications

• Model, Chip, Protocol:
  • TAG-C9622, U8 (NXP UCODE 8), ISO 18000-6C Gen2V2
  • TAG-CH47, Qstar-73GB, ISO 18000-6C Gen2
  • TAG-C7014, FM011E, ISO 18000-63 Gen2V2
  • TAG-C7018, U8/U9 (NXP UCODE 8/9), ISO 18000-6C Gen2V2
  • TAG-CH10, H10/H12 (Alien Higgs 10), ISO 18000-6C Gen2
  • TAG-CH3, H3 (Alien Higgs 10), ISO 18000-6C Gen2
• Frequency: 915MHz
• Active: No
• Maximum Distance: 1-8m (depends on reader device)
• Data Storage: > 10 years
• Material: PVC
• Dimensions:

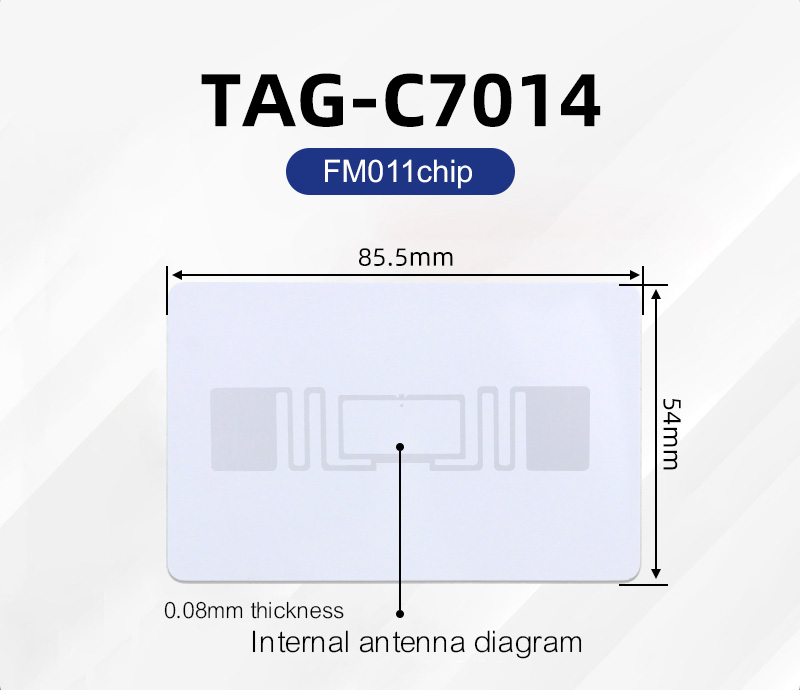

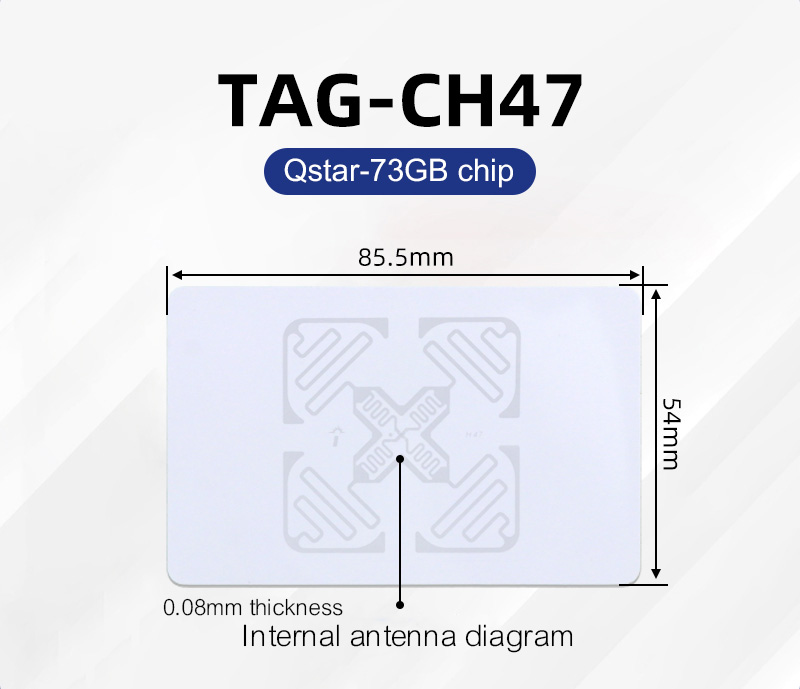

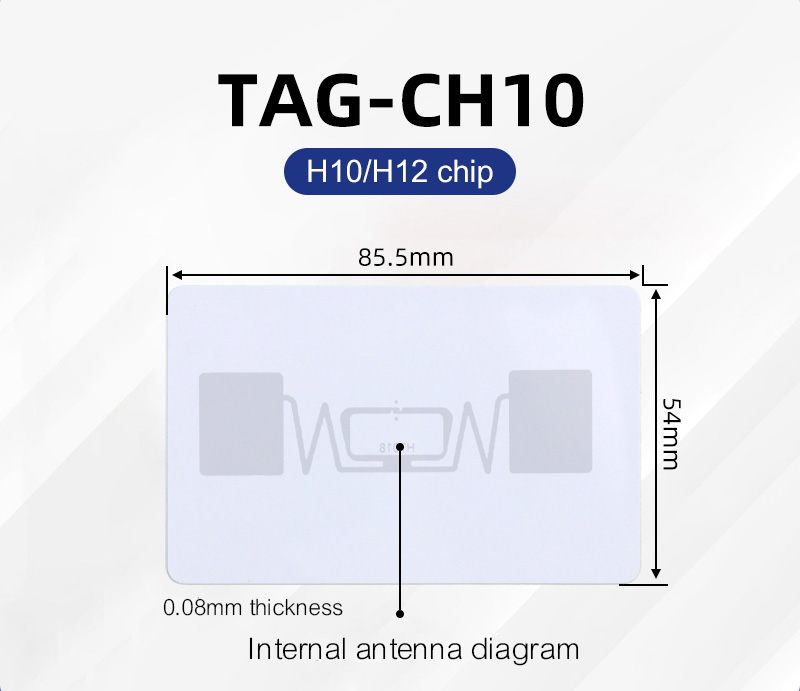

  • TAG-CH47/TAG-C7014/TAG-C7018/TAG-CH10, TAG-CH3 - 86x54mm

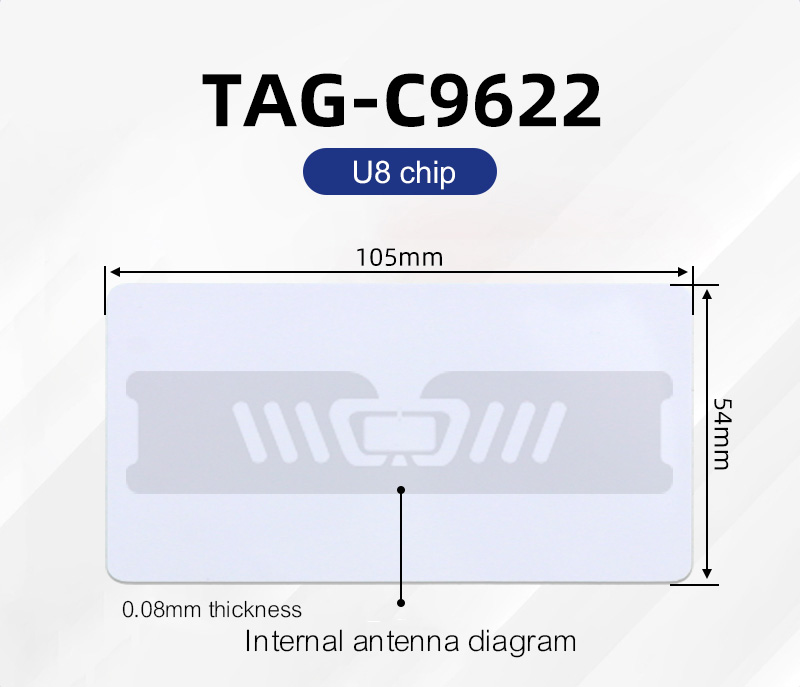

  • TAG-C9622 - 105x54mm
• Color: White

Datasheet:
TAG-C9622 U8 SL3S1205 - https://www.nxp.com/docs/en/data-sheet/SL3S1205_15.pdf
TAG-CH47 - https://www.quanray.com/uploadfile/2021/0225/20210225022257737.pdf
TAG-C7014 FM011E/FM13UF011E/UF011E - https://shopsource.singoo.cc/39/2/DK87kJZtyr8CCZN7/FM13UF011E_ds_eng.pdf
TAG-CH10 H10 - https://www.alientechnology.com/products/ic/higgs-10/
TAG-CH3 H3 - https://www.alientechnology.com/products/ic/higgs-3/
