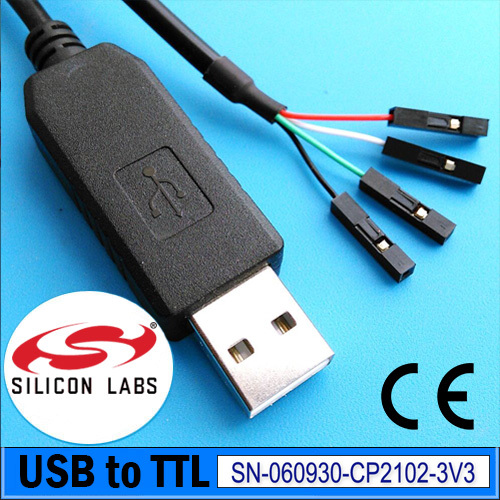

Original Silicon Labs CP2102 USB to TTL UART 3.3V interface cable

Warning: This is TTL, NOT 232. TTL is not RS232!

This USB2.0 Full Speed IC offers a compact bridge for basic UART interface. The device is UART capable of working at speeds up to 3Mbaud, with lower consumption (8mA). CP2102 includes complete features of the CP series and allows easy and quick USB connection to the system via UART interface.

Features:

• Win 7, 8, 10 - installation without the need to install drivers
• USB 2.0 Full Speed compatible
• CP2102 USB TTL CABLE
• USB UART TTL 3.3V cable
• Data transfer speed from 300 baud to 3Mbaud
• Support for UART interface for 7 or 8 data bits, 1 or 2 stop bits, and odd/even/mark/space/no parity
• True 3.3V CMOS drive output and TTL input.
• Wire: 175 cm DuPont, 24AWG * 4 wires, PVC sheath, black, copper

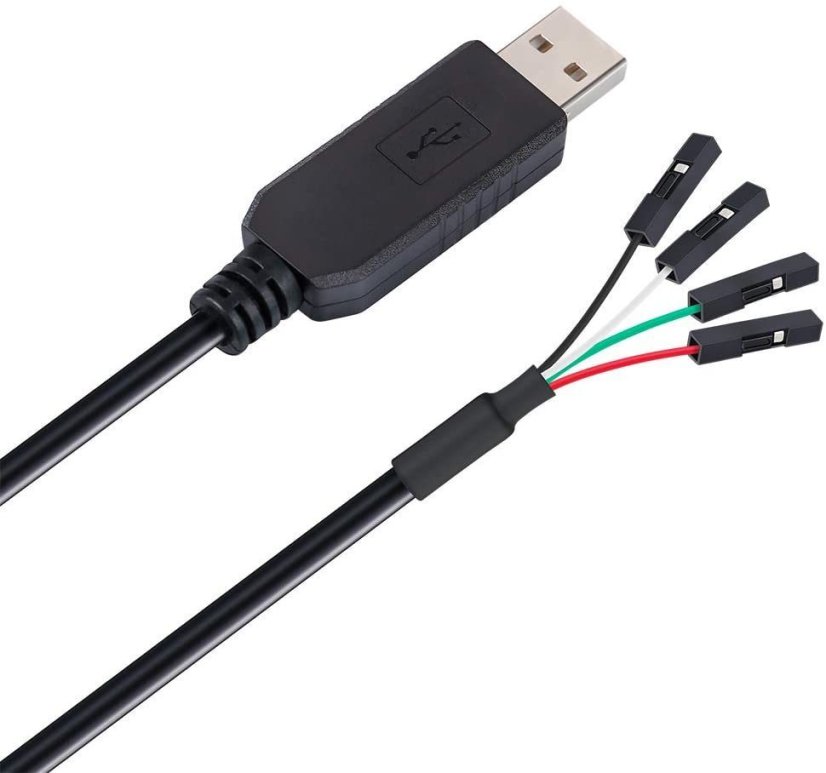

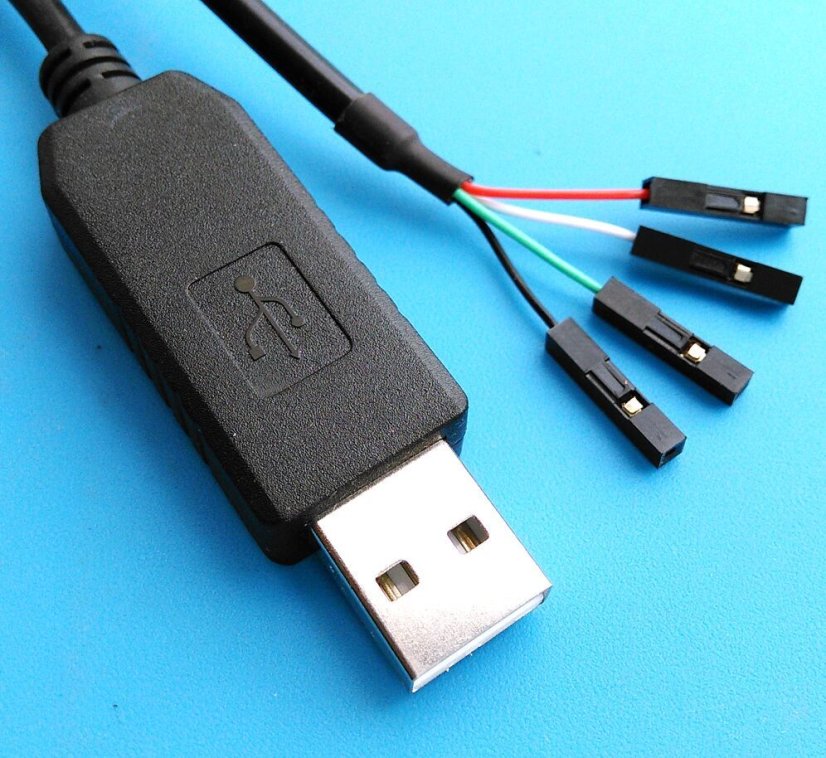

• Wire color coding: Red-VCC(5V), White -TX, Green-RX, Black-GND
• Support for Android, support for Win10, Win 8, Win 7, XP, 2000, Linux, Android, Mac OS
• FCC, RoHS compliant

Datasheet: https://www.silabs.com/documents/public/data-sheets/CP2102-9.pdf

Drivers: Silicon Labs CP2102 drivers

USB driver installation made easier: Zadig
