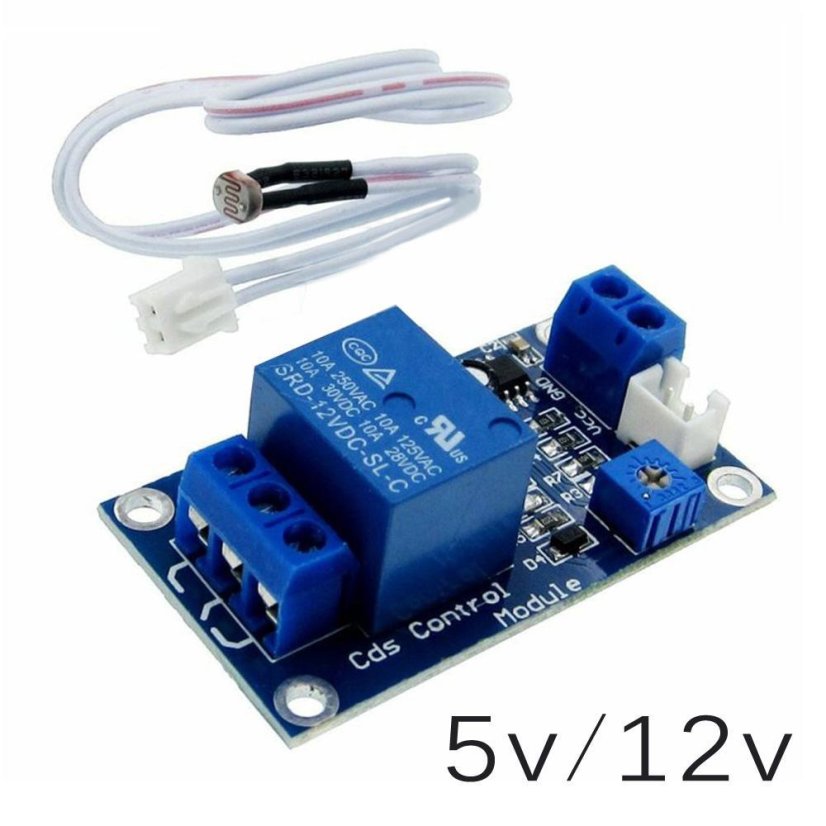

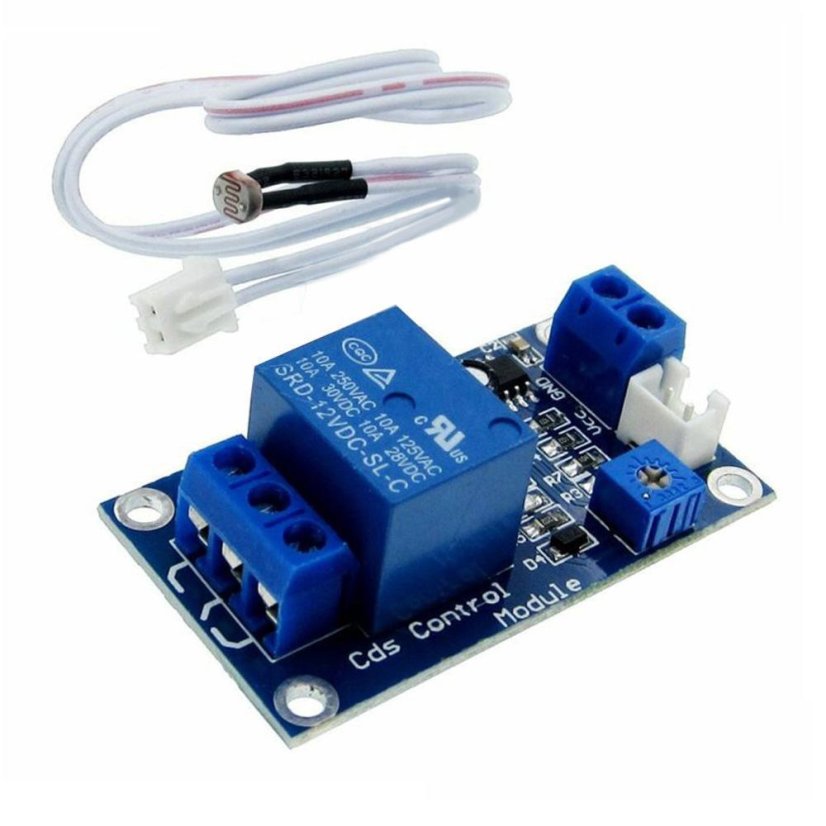

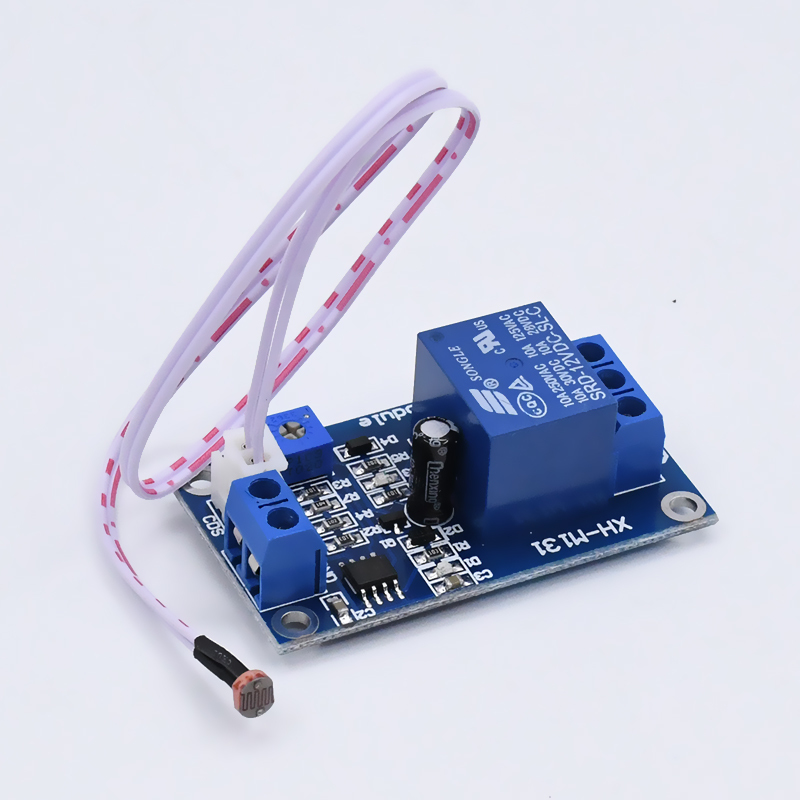

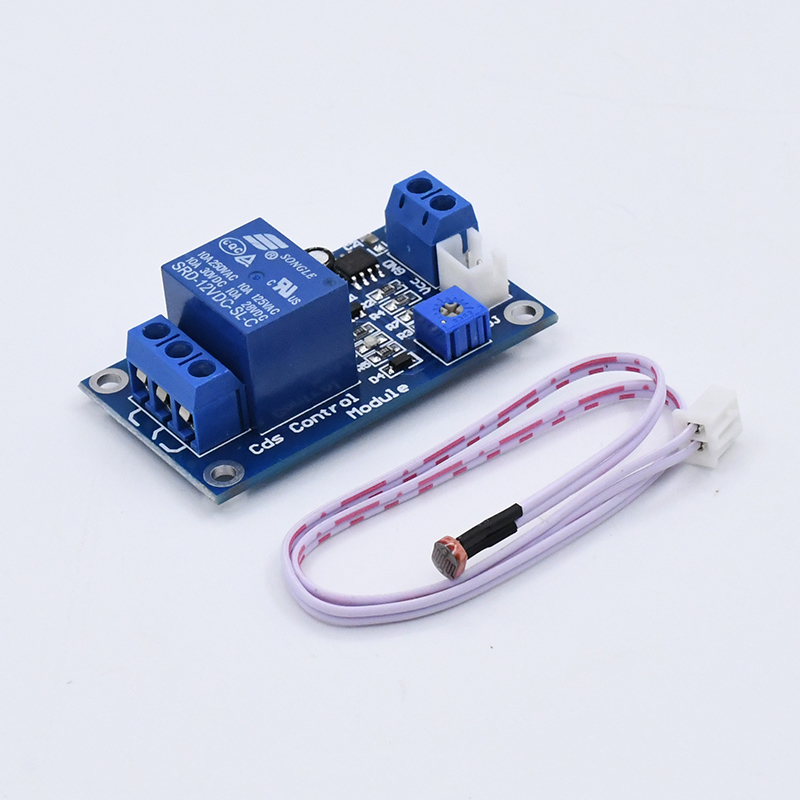

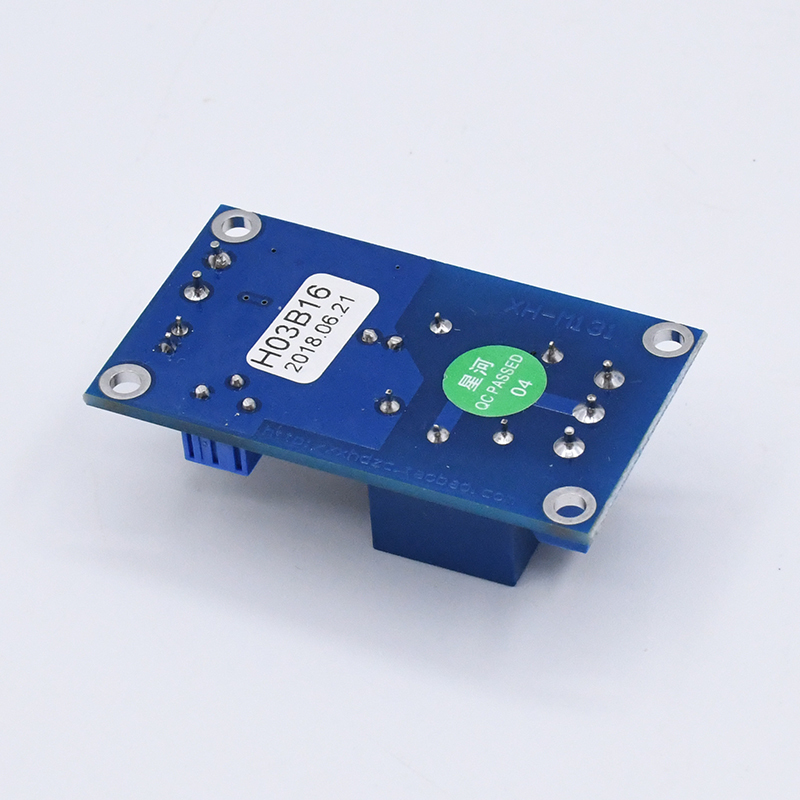

XH-M131: Intelligent Twilight Switch with Photo Sensor
XH-M131: Intelligent Twilight Switch with Photo Sensor
The XH-M131 is an intelligent twilight switch with a photo sensor suitable for automating shades, awnings, lights, and other devices based on ambient light intensity. More
2,90 EUR
incl. VAT
The XH-M131 is an intelligent twilight switch with a photo sensor suitable for automating shades, awnings, lights, and other devices based on ambient light intensity. More
XH-M131: Intelligent Twilight Switch with Photo Sensor 5V/12V/24V
The XH-M131 twilight switch is ideal for automating shades, awnings, lights, and other appliances based on ambient light intensity. It allows for sensitivity adjustment using a trimmer for maximum customization.
Specifications:
- Input Voltage: DC 5V, 12V, or 24V
- Maximum Load: 10A / AC 250V or DC 30V
- Power Indicator: Red LED
- Relay ON Indicator: Blue LED
- The module has three output terminals:
- Switching Contact (NO)
- Common Contact (COM)
- Normally Closed Contact (NC)
- Detection Frequency: 1MHz

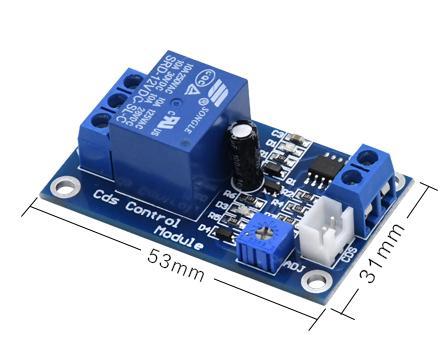

- Dimensions: 53*31*19mm
