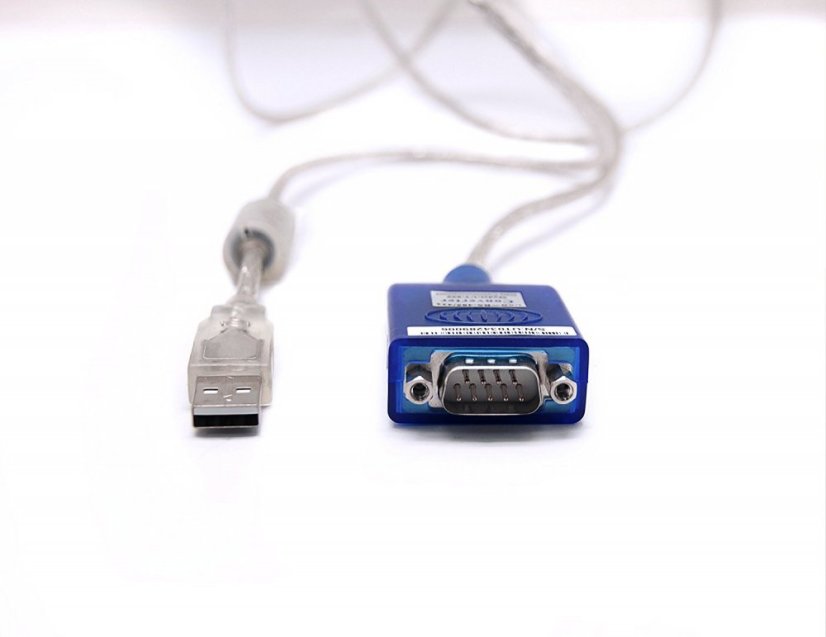

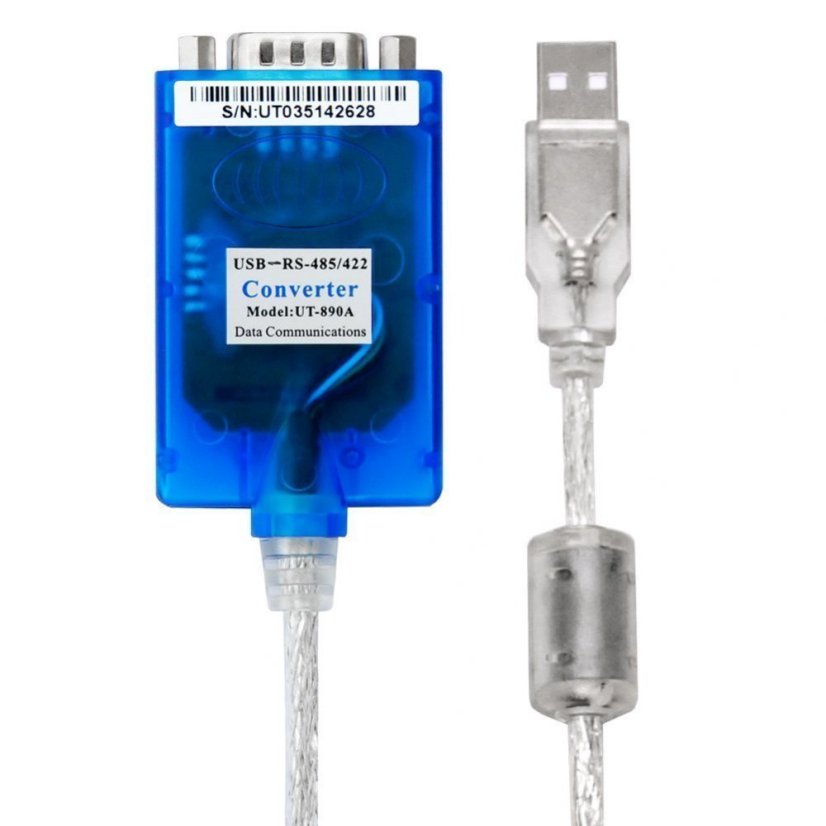

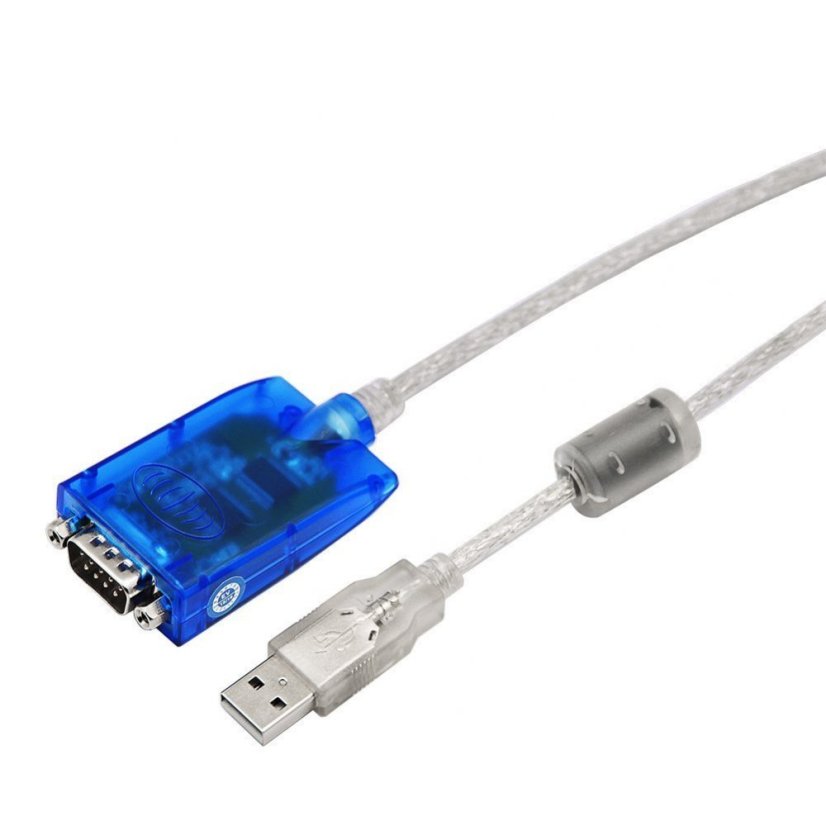

890A professional RS-485/422 USB adapter

With this professional adapter, you can easily connect devices with RS485/RS422 ports to a computer via USB using an FTDI chip.

Specifications:

• Model: UT-890A
• Chipset: FTDI FT232/original FT232RL
• Standards: compliant with USB V1.0, 1.1, and 2.0
• RS-485, RS-422 TIA/EIA Standard
• Baud rate: 300-921.6Kbps auto-detection of serial signal
• Operating mode: asynchronous, point to point
• Transmission medium: twisted pair or shielded cable
• USB signal: VCC, DATA-, DATA+, GND, FG
• RS485 signal: T/R+, T/R-, GND
• RS422 signal: T+, T-, R+, R-, GND
• Load capacity: supports point-to-point communication
• Control direction: automatic flow control technology for distinguishing and managing direction
• Transmission distance: 5m for RS485 RS422 port, maximum 5m for USB port
• Operating temperature: -25°C to 70°C
• CE: yes
• Manufacturer: Utek China

Compatible with:

• Windows XP, 7, 8, 10, CE - 32/64-bit;
• Mac OS-X
• Linux 3.2 and higher

Package includes:

• 1 x USB 2.0 to RS-422/485 serial adapter with FTDI chip and 1.8m cable.
• 1 x User manual in English
• 1 x CD with drivers
• 1 x Adapter
