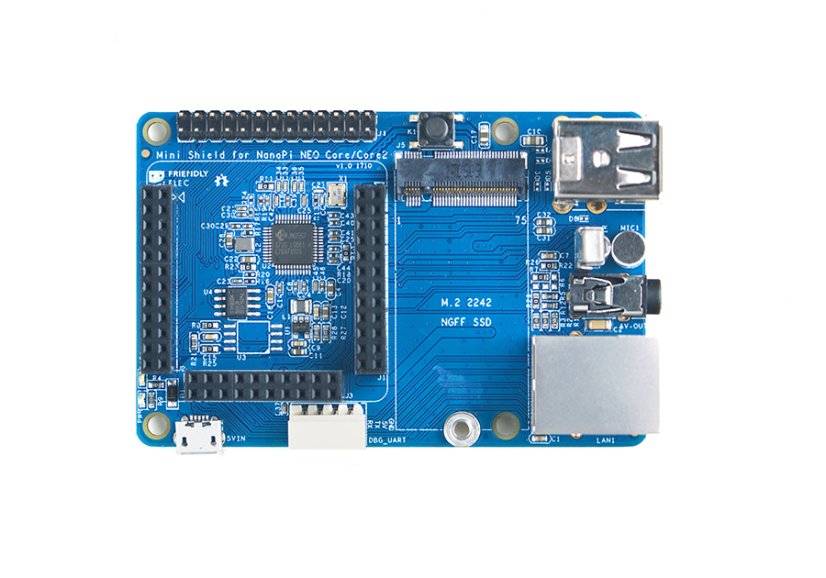

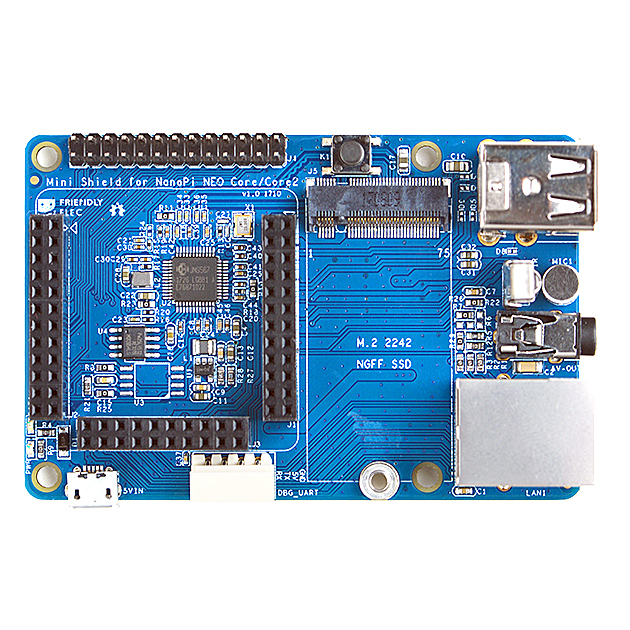

The Mini Shield pro NanoPi NEO Core/Core2 is a custom SDK carrier board developed for NanoPi NEO Core and NanoPi NEO Core2. It features an Ethernet port, serial debug port, audio, USB ports, and more.

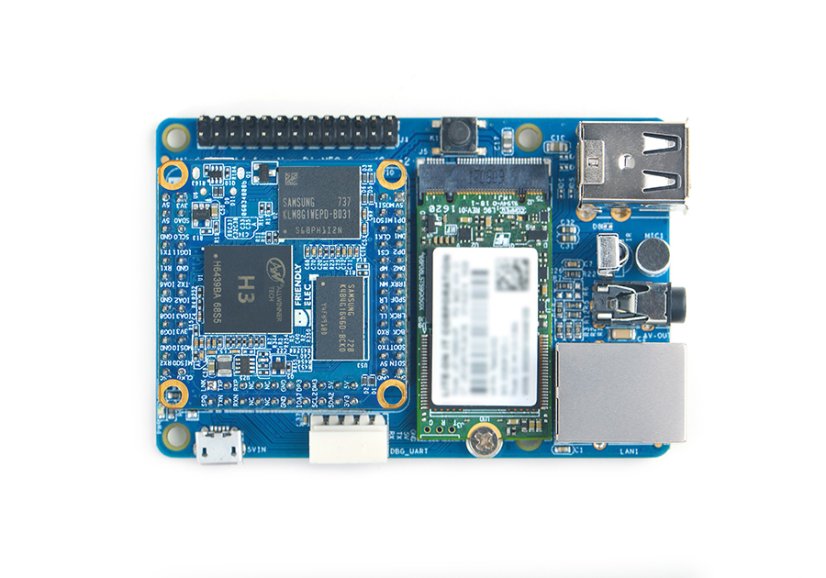

• 1 x Integrated JMS567 USB to SATA IC and 1 x M.2 SSD interface for connecting 2242 SSD.
• 2 x USB Host ports.
• 1 x Serial debug port for connecting a board for serial communication and 1 x Ethernet port.
• 1 x Integrated microphone and 1 x 3.5mm audio jack for audio recording and playback.

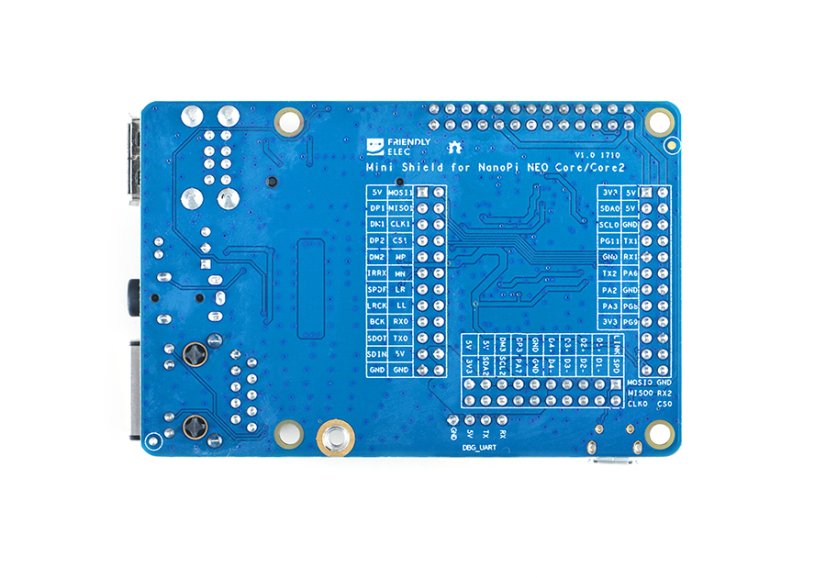

• 2 x 13-pin header which populates the IO pins of the NanoPi NEO Core/Core2.
• 1 x button and 1 x IR interface for use with a remote control.
• Space reserved for SPI Flash (SOP8-200mil). Users can solder SPI flash onto the board.

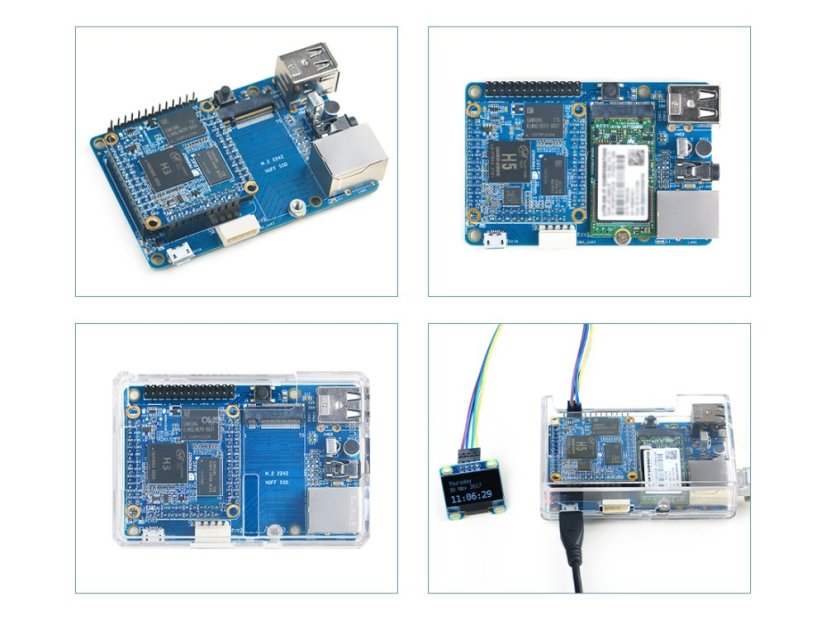

• Same dimensions and mounting holes as Raspberry Pi. The whole board fits well in an RPi case.

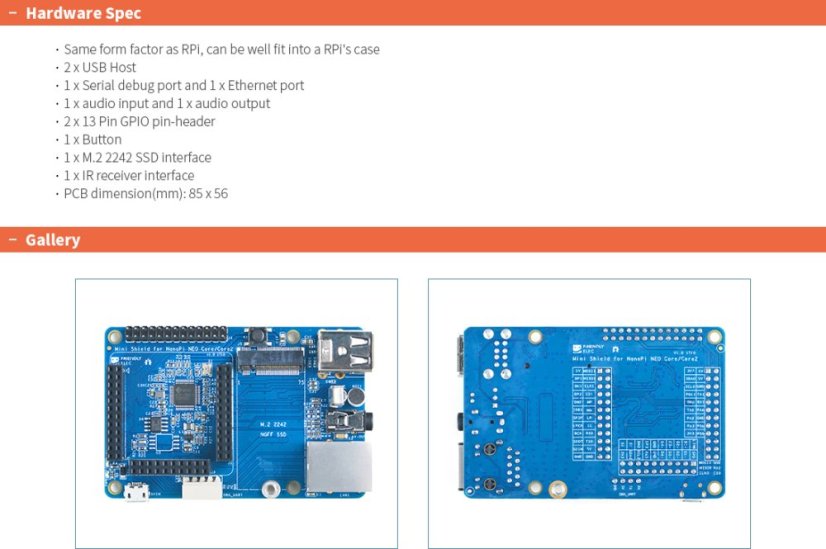

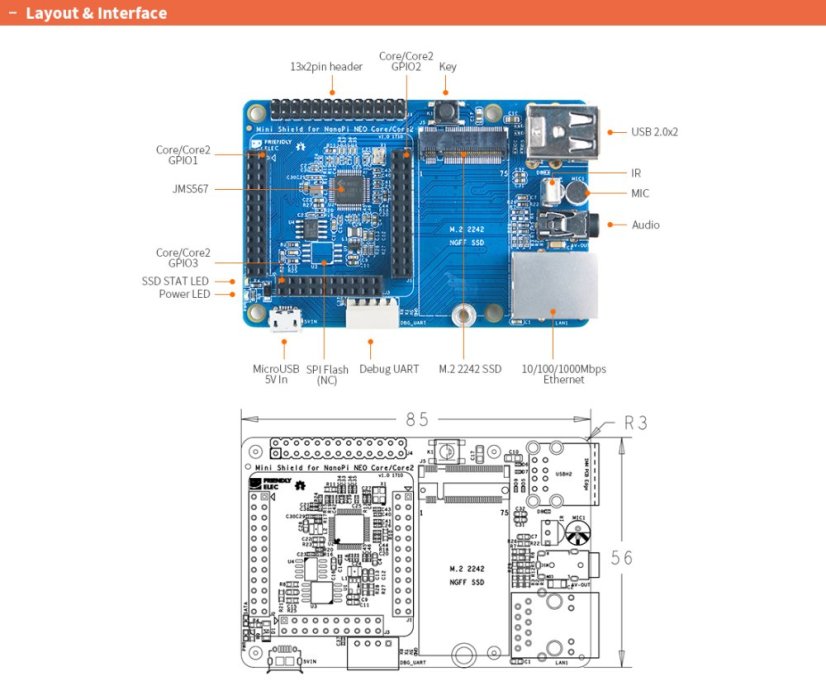

Hardware specifications:

• Same format as RPi, can fit well in an RPi case.
• 2 x USB Host.
• 1 x Serial debug port and 1 x Ethernet port.
• 1 x audio input and 1 x audio output.
• 2 x 13-pin GPIO pin-header.
• 1 x Button.
• 1 x M.2 2242 SSD interface.
• 1 x IR receiving interface.
• PVC dimensions (mm): 85 x 56.

Wiki: https://wiki.friendlyelec.com/wiki/index.php/Mini_Shield_for_NanoPi_NEO_Core/Core2

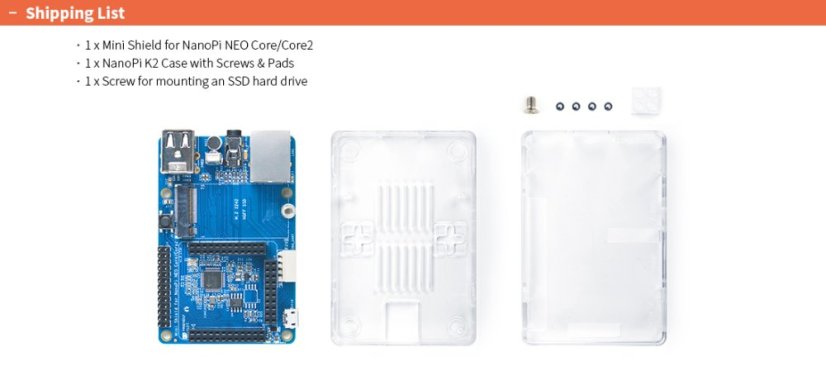

Package contents:

1x Nano Pi Mini Shield

1x Plastic case, transparent
