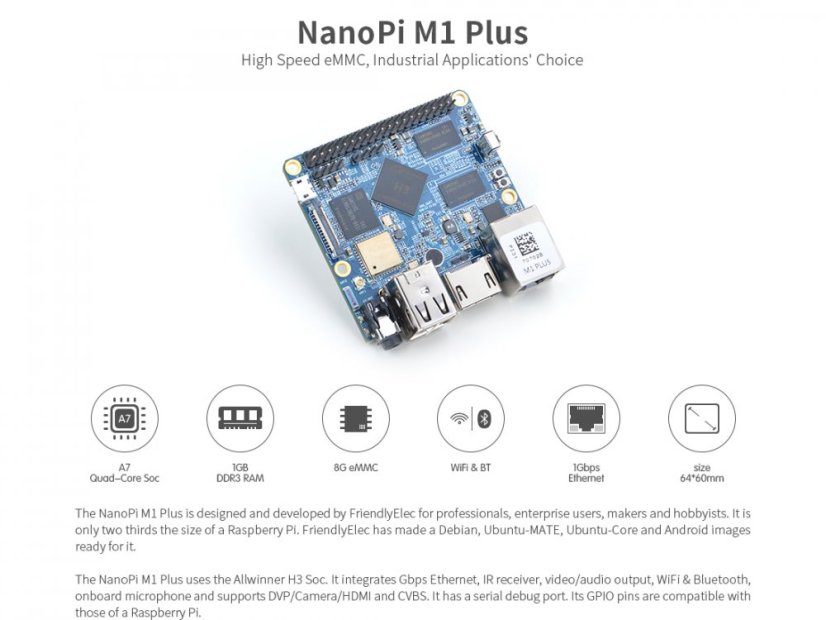

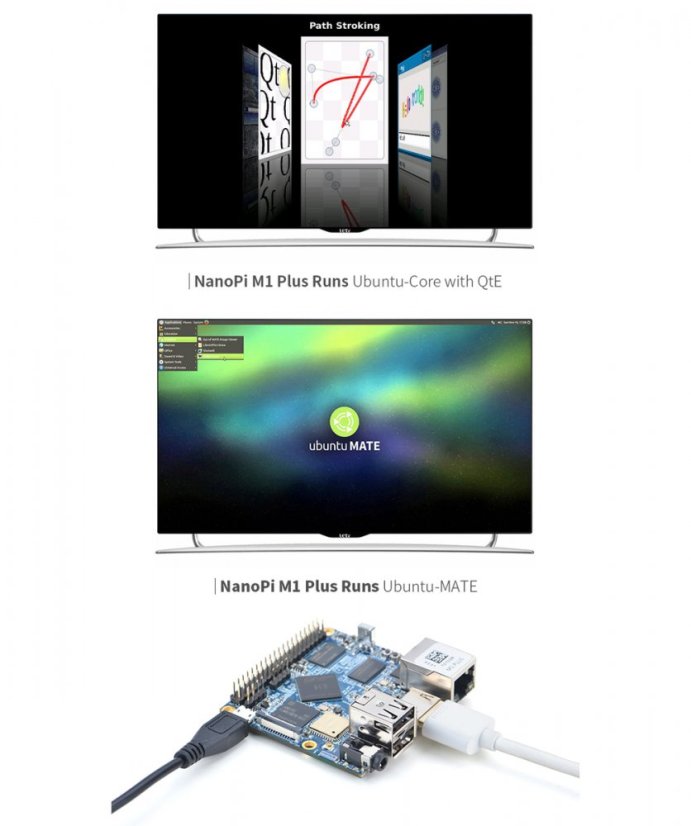

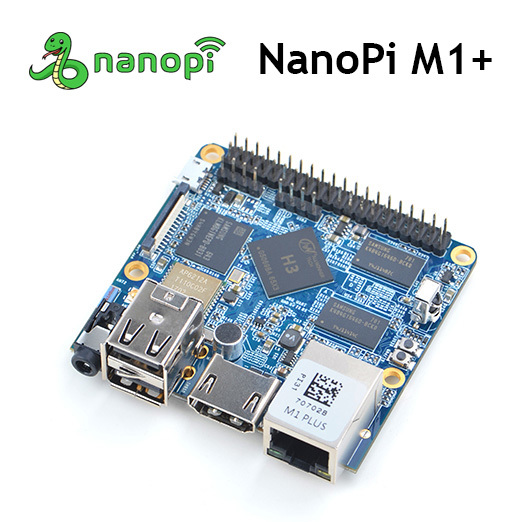

The NanoPi M1 Plus is designed and developed by FriendlyElec for professionals, corporate users, manufacturers, and enthusiasts. It is one-third smaller than the Raspberry Pi. FriendlyElec provides images of Debian, Ubuntu-MATE, Ubuntu-Core, and Android for use with the NanoPi M1 Plus.

The NanoPi M1 Plus uses the Allwinner H3 SoC. It features Gbps Ethernet, an IR receiver, video/audio output, Wi-Fi, and Bluetooth, along with an integrated microphone. It also supports DVP/camera/HDMI and CVBS. The board offers a serial debug port and a GPIO connector compatible with Raspberry Pi.

Follow the manufacturer's instructions; all NanoPi models come with a cooling assembly included in the price.

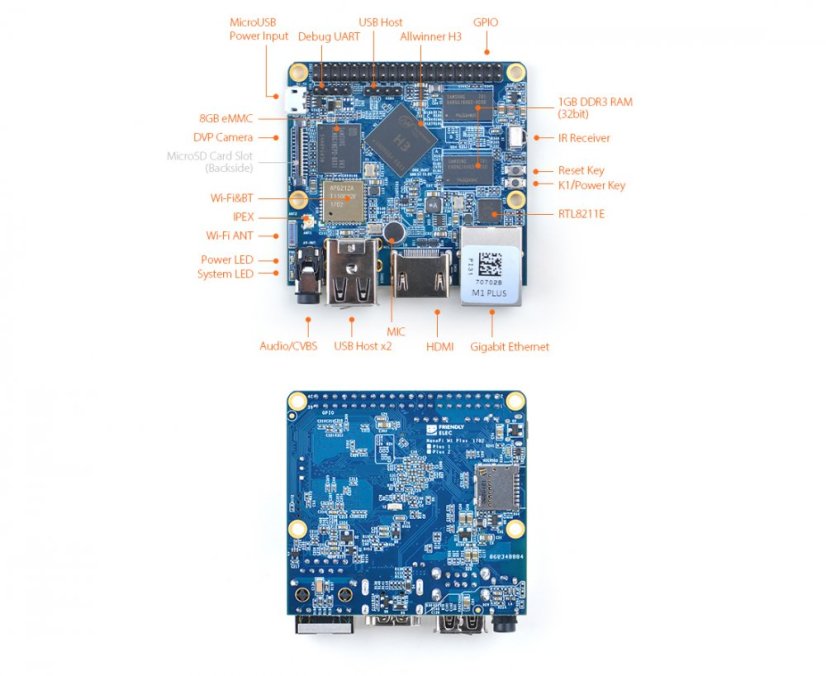

Specifications:

• Model: NanoPi M1 Plus
• GPU: Mali400MP2@600MHz, supports OpenGL ES2.0
• DDR3 RAM: 1GB
• eMMC: 8GB
• Wireless: 802.11 b/g/n
• Bluetooth: 4.0 dual-mode
• Antenna Interface: Shared Wi-Fi and Bluetooth, IPX interface
• Connection: 10/100/1000M Ethernet
• Audio: 3.5mm jack/Via HDMI
• Microphone: integrated microphone
• IR: integrated IR receiver
• USB Host: USB 2.0 x 3, 2 x USB Type A and 1 x 2.54mm pin-header
• MicroSD Slot: x1
• MicroUSB: power input and data transfer, OTG
• Audio Output: HDMI 1.4 1080P, CVBS
• DVP Camera Interface: 24pin, 0.5mm pitch FPC seat
• Serial Debug Port: 4Pin, 2.54mm pitch pin-header
• GPIO: 40pin, 2.54mm pitch pin-header, compatible with Raspberry Pi GPIO. Includes UART, SPI, I2C, I2S/PCM, SPDIF-OUT and IO.
• User Buttons: 1 x Power Button and 1 x Reset Button
• LED: 1 x Power LED and 1 x System Status LED
• PCB Size: 64 x 60 mm
• Power Supply: DC 5V/2A
• OS/Software: u-boot, Debian, Ubuntu-MATE, Ubuntu-Core

Package Contents:

1x NanoPi M1 Plus

1x USB cable

1x antenna

1x heat sink

These open-source boards are shipped without a manual and support. Everything needed can be found on the FriendlyARM wiki page.

Related Resources

WIKI: http://wiki.friendlyarm.com/wiki/index.php/NanoPi_M1_Plus

Schematics: NanoPi-M1-Plus-1702-Schematic.pdf

Allwinner H3 datasheet: Allwinner_H3_Datasheet_V1.2.pdf
