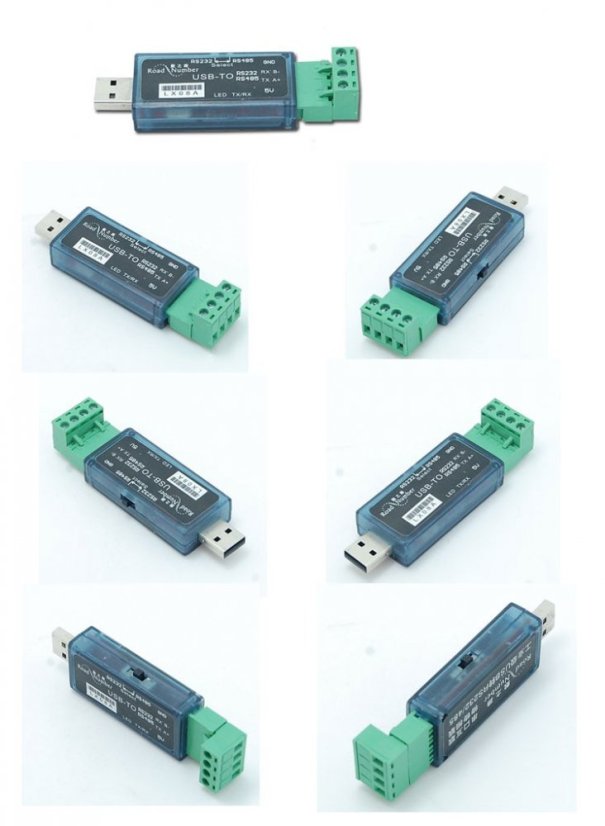

USB Converter RS485/RS232 for PC

A high-quality RS485/232 to USB 2.0 converter. The converter supports data transmission speeds of up to 115200bps and up to 32 nodes.

Standards Supported:

• USB v. 1.0, 1.1, 2.0
• TIA/EIA RS485/232

Additional Features:

• Model: LX08A

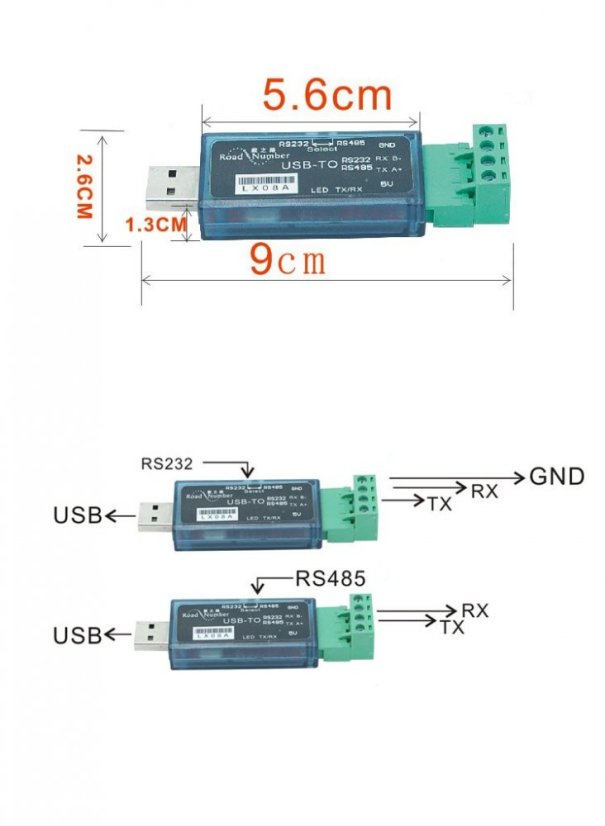

• RS-485/232 Signals: T/R+, T/R-, GND
• Modes: Asynchronous, Point-to-Point, Point-to-Multipoint, 2-Wire (Half-Duplex), 4-Wire (Full-Duplex)
• Transmission Rates: 300 to 115200, automatic detection of signaling rate
• Load Capability: 32 devices in Point-to-Multipoint topology.
• Transmission Distance: RS485 1.2km (all rates), USB: 5 Meters
• Signaling Diagnostics: LEDs for POWER, TX and RX
• Dimensions: 175X120X45 mm
• Working environment: -40C to 85C, RH 5%-95%
• Chipset: WCH CH340

OS Support:

• Windows XP / Vista / Server / WIN7 / WIN8 / WIN8.1 / WIN10 (32 bit, 64 bit) fully compatible
• Linux
• Mac OS 10.X

Package Contents:

• USB to RS485/232 Converter CH340 CHIP with Terminals
