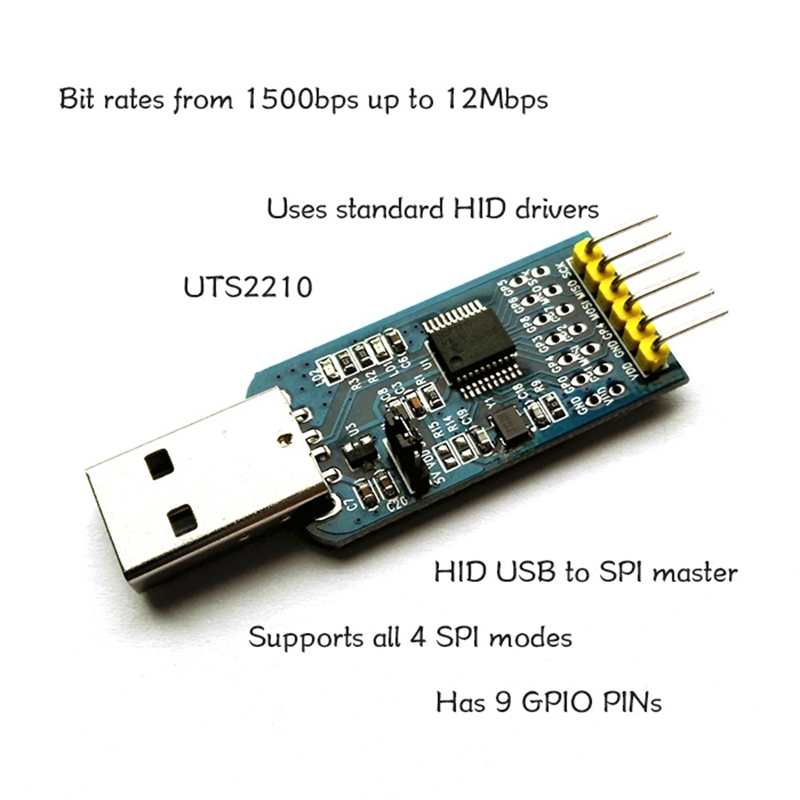

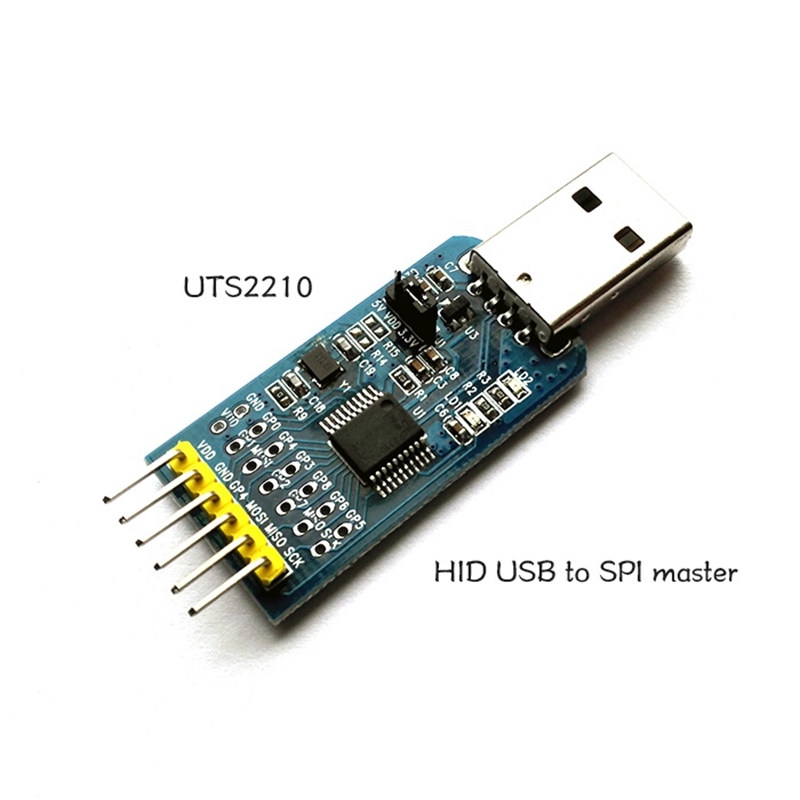

USB to SPI Master HID Converter UTS2210 Development Board

Specifications:

• Compatible with USB 2.0 (12 Mb/s)
• Uses standard HID drivers (Human Interface Device), (Windows XP/7/10, with built-in support for Linux and Mac OS)
• No driver installation required.
• Used for processing data between a 128-byte receiver and a 64-byte transmitter

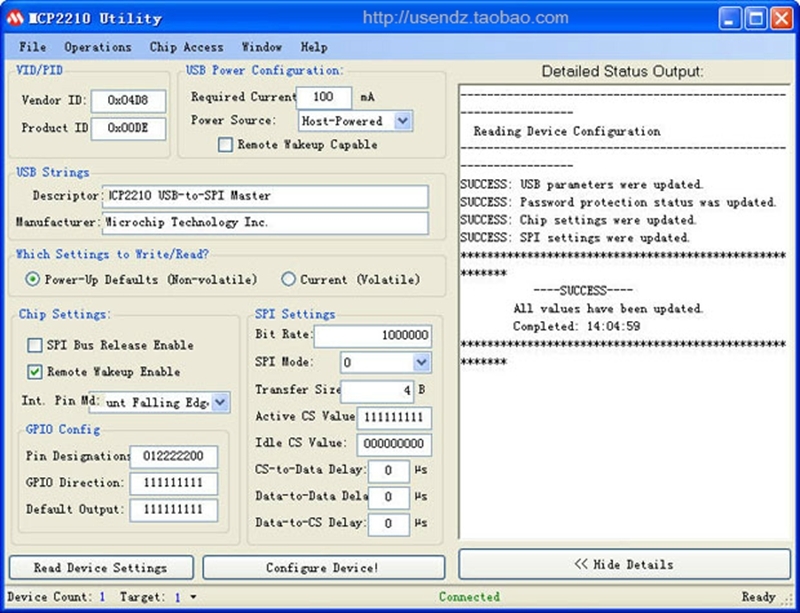

• Fully configurable VID and PID assignment and string descriptor (also offers factory programming)
• Supports USB power (original factory setting) or external power (you can choose) via special USB commands
• Used for programming and configuring devices
• Used for communication between USB - SPI, GPIO control, and for other useful features
• SPI master device
• Supports all four SPI modes (0, 1, 2, and 3)
• Transfer speed from 1500 BPS to 12 megabits per second
• Configurable SPI transfer delay:
• setting (effective) based on the delay time of the first bytes of data transmission
• delay time when transferring between data
• option to set data transfer delay (can also be set to zero)
• SPI transfer length: 65535 bytes
• Choice of nine different lines that you can combine to achieve the desired SPI transfer (part of the line selection is in GPIO inputs and associated functions among them)
• Usage; some GPIO input pins (up to 9) can choose functional assignment
• General input/output (General I/O, GPIO) pins
• Nine generic I/O inputs
• EEPROM
• 256 byte user EEPROM block (access via any of the USB commands)
• Industrial operating temperature: -40°C to +85°C

Package includes:

• USB Converter Board: 1 piece

Note: does not include any dupont line
