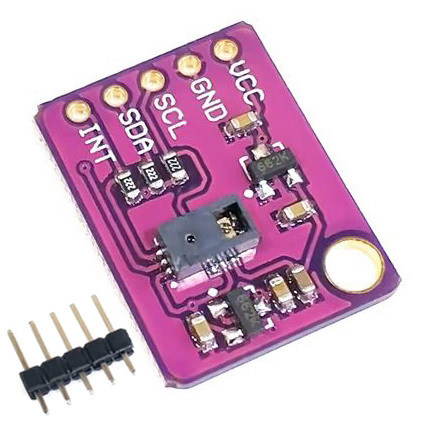

CJMCU-7620 PAJ7620U2 Gesture Sensor

Sensors PAJ7620U2 CJMCU-7620 for Gesture Recognition

A module for gesture recognition that can identify up to 9 basic gestures, including movements: up, down, left, right, forward, backward, clockwise, counterclockwise, and waving.

It communicates via the I2C interface and has 2 operating modes with gesture recognition speeds: normal and gaming.

The sensor can recognize gestures from a distance of 15 cm and within a range of 60°.

Specifications:

• Model: CJMCU-7620
• Chip: PAJ7620U2
• Power Supply: 2.8V to 3.3V
• Operating Current: 3mA-10mA
• Gesture Recognition Speed in Normal Mode: 60°/s - 600°/s
• Gesture Recognition Speed in Gaming Mode: 60°/s - 1200°/s
• Ambient Light Measurement
• I2C Communication Interface with Speed of 400 kbit/s
• Dimensions: 20mm x 15mm

Interface Definitions:

INT: Interrupt Output

SDA: I2C Data Port

SCL: I2C Clock Port

GND: Negative Power Input
VCC: Positive Power Input
Jumper Length: 2.54mm (Circular Spacing Between Two Holes)
