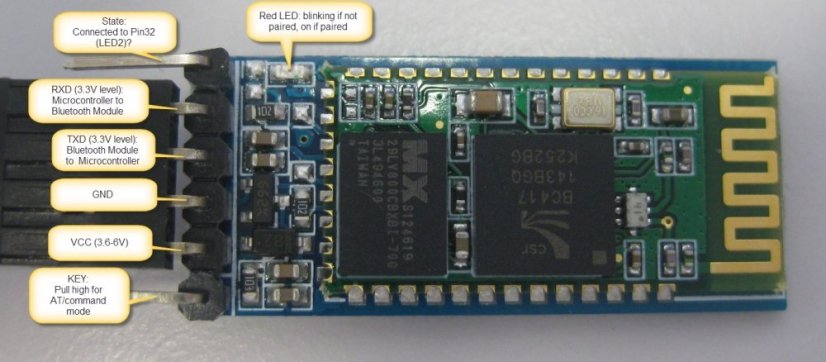

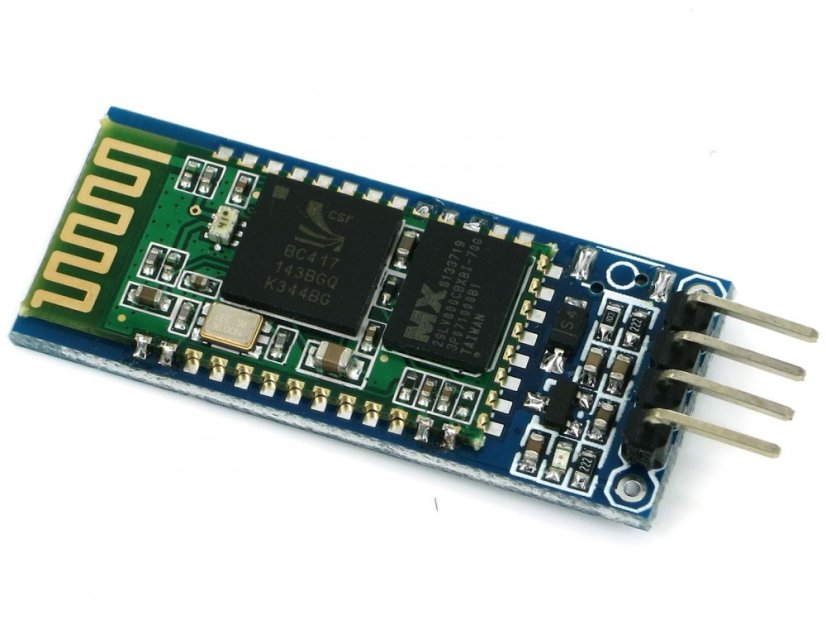

HC-05 Bluetooth 2.0 TTL Serial Converter Module

Bluetooth to RS232 TTL converter module HC-05.

Utilized for communication with microprocessors like PIC, ATMEL, etc., via PC.
A small Bluetooth RF module, slave, encapsulated.

Features:

• Enables devices to send and receive TTL data over Bluetooth interface.
• Works with any Bluetooth adapter.
• Depending on current stock, the jumper wire may not be included.

Specifications:

• Bluetooth version: V2.0+EDR
• Bluetooth ID: hc-05
• Pairing code: 1234
• Role: master/slave
• Chipset: CSR BC417
• Operating voltage: 3.3V
• Power supply voltage: 3.6 - 6V
• Default Baud Rate: 9600,8,1,n.
• Integrated antenna, range up to 10 meters (30m if not paired)
• Dimensions: 4.3 x 1.6 x 0.7cm
• Weight: 3g

The package includes:

1x HC-05 development module

4x cable

Instructions: http://www.tec.reutlingen-university.de/uploads/media/DatenblattHC-05_BT-Modul.pdf
