NanoPC T3 Plus - Powerful ARM Board with Open Source

NanoPC T3 Plus Samsung S5P6818 2GB LPDDR3 RAM, 16GB eMMC, High-Performance ARM Board

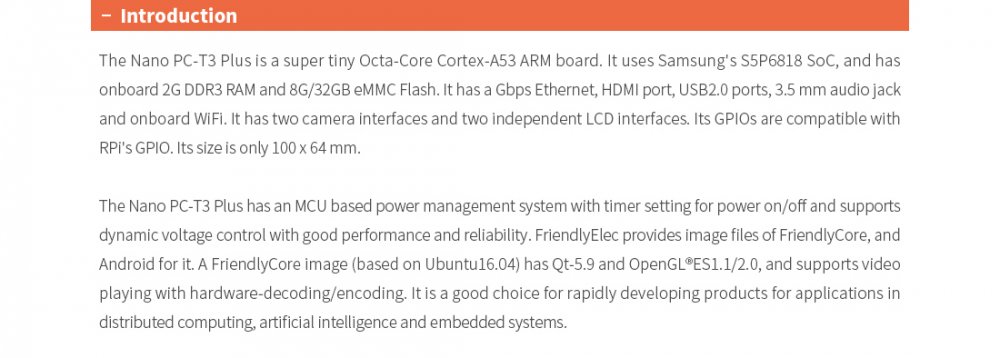

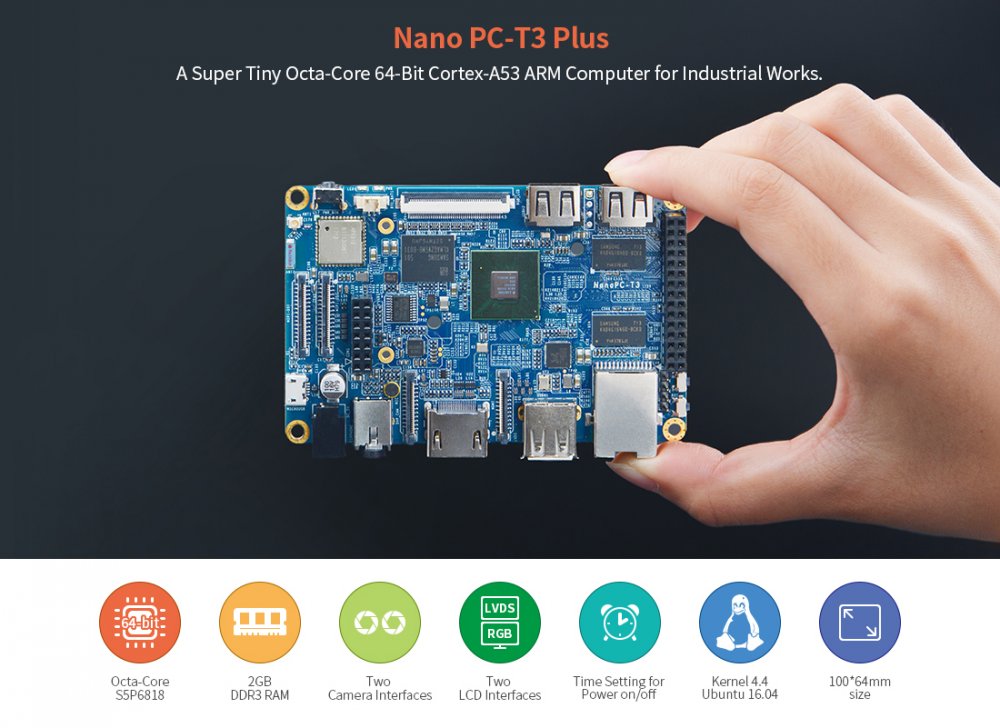

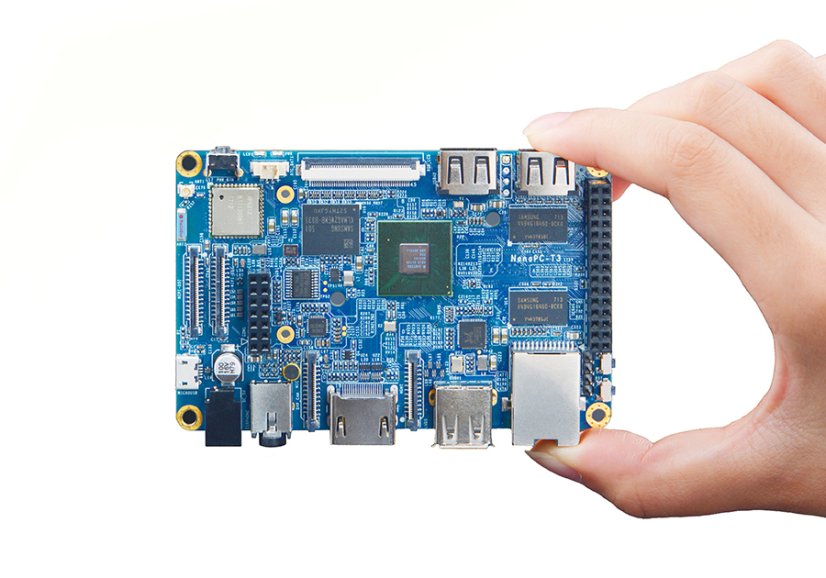

The NanoPC T3 Plus is a high-performance ARM board based on the S5P6818 with popular ports and interfaces. Its software is fully open source. Measuring just 100 x 64 mm, it has 2GB LPDDR3 RAM, 16GB flash eMMC, an integrated 2.4G Wi-Fi module, and Gbit LAN. The NanoPC T3 Plus supports GPU and VPU acceleration and runs both Android and Debian.

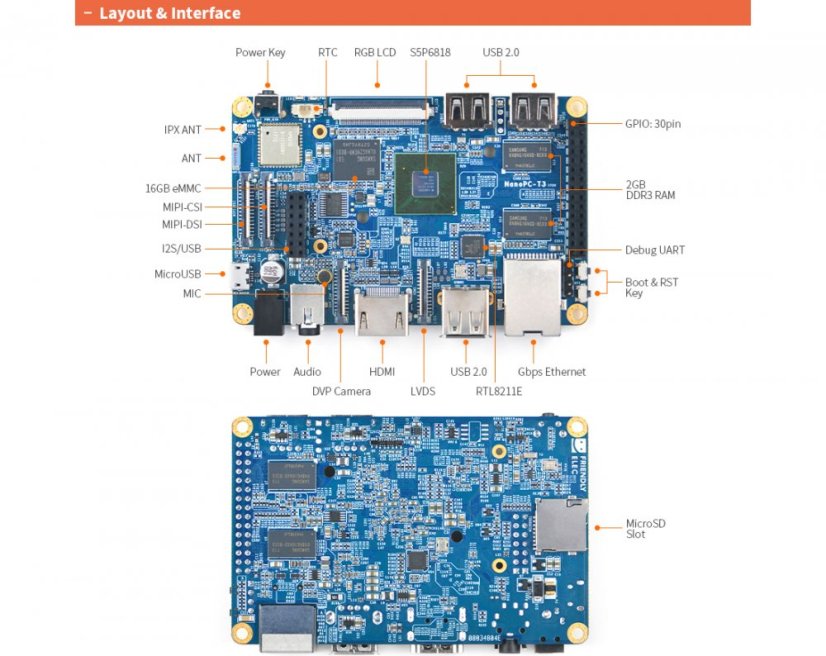

The NanoPC T3 Plus features a dual-camera interface MIPI-CSI, MIPI-DSI, and HDMI 2.0 display interface. It includes USB 2.0, microSD, Gbps Ethernet port, 3.5 mm audio jack, infrared receiver, AD input, serial debug interface, and a compatible 30Pin RPi connector.

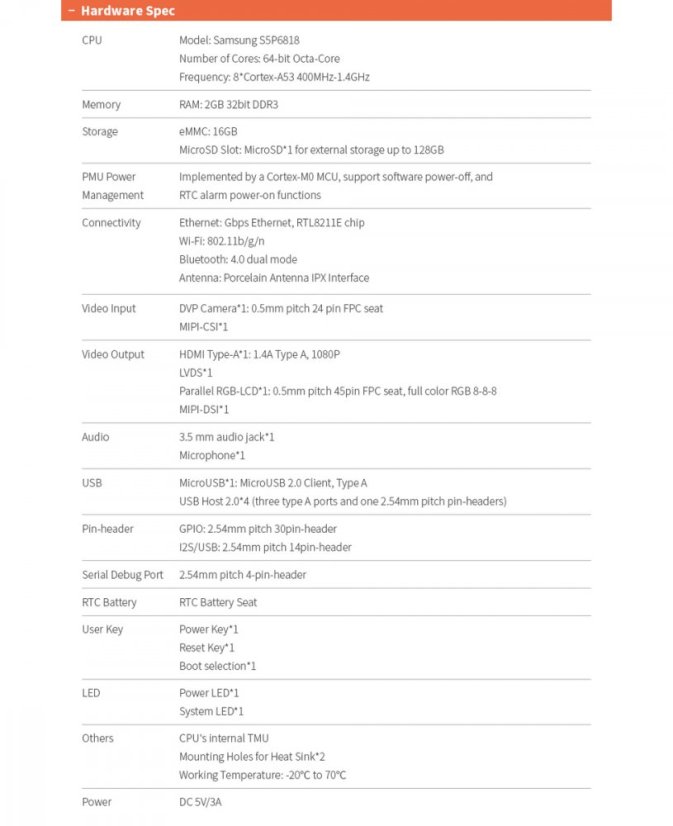

Specifications:

• Model: NanoPC T3 Plus
• SoC: Samsung S5P6818 Octa-Core Cortex-A53, 400M Hz - 1.4G Hz
• PMU Power Management: Implemented via MCU, supports software shutdown and RTC alarm for power-on.
• System Memory: 2GB 32bit DDR3 RAM
• SD Storage: 1 x microSD Card Socket
• Ethernet: Gbit Ethernet (RTL8211E)
• WiFi: 802.11b/g/n
• Bluetooth: 4.0 dual mode
• Antenna: Porcelain Antenna IPX Interface
• eMMC: 16GB
• Video Input: DVP Camera/MIPI-CSI (two camera interfaces)

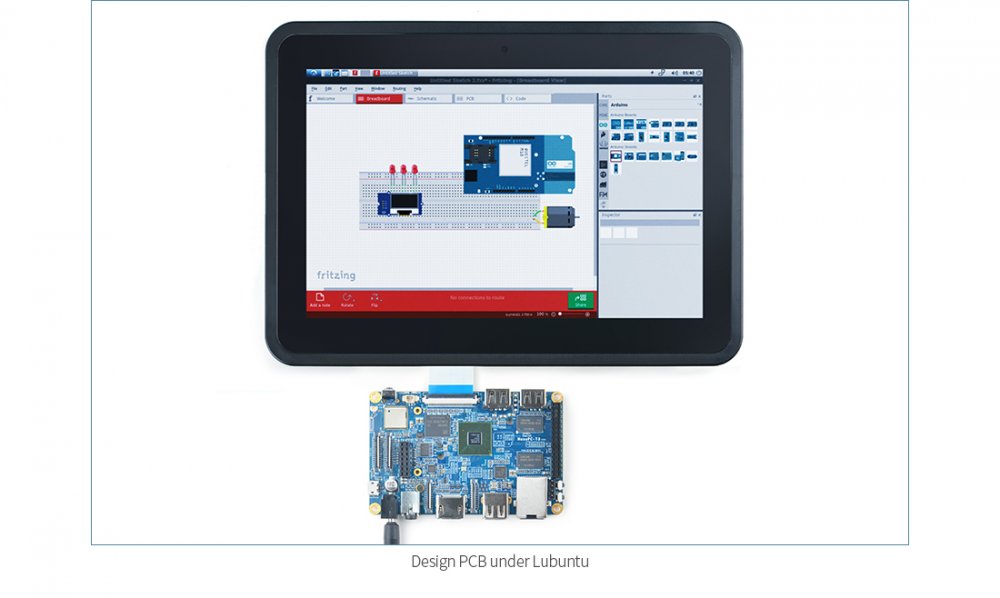

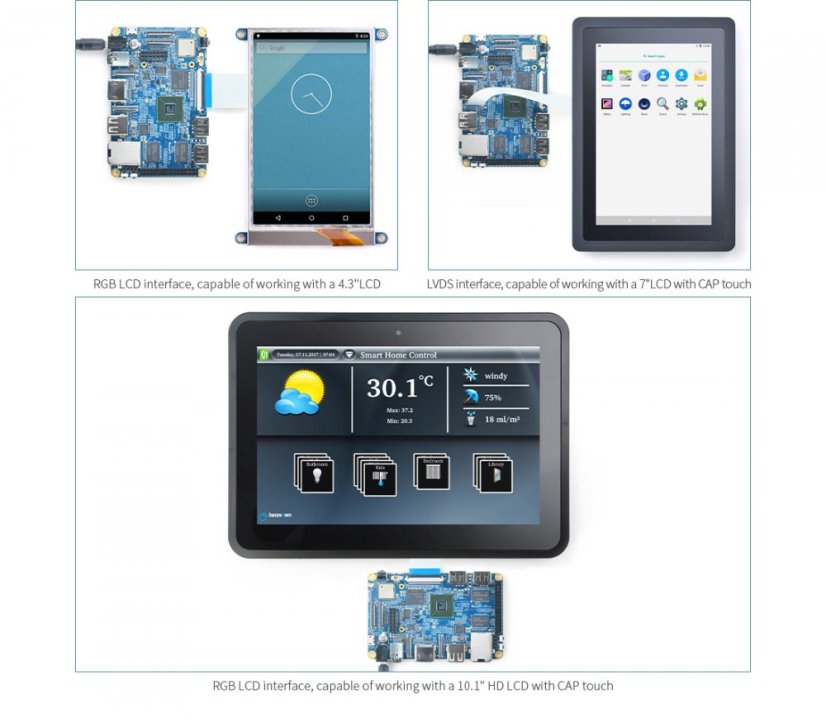

• Video Output: HDMI Type-A / LVDS / Parallel RGB-LCD / MIPI-DSI (four video output interfaces)
• Audio: 3.5 mm audio jack / via HDMI
• Microphone: Onboard Microphone
• USB Host: 4 x USB 2.0 Host, three type A ports and one 2.54 mm pitch pin-header
• MicroUSB: 1 x MicroUSB 2.0 Client, Type A
• LCD Interface: 0.5mm pitch 45 pin FPC seat, full color RGB 8-8-8
• HDMI: 1.4A Type A, 1080P
• DVP Camera: 0.5mm pitch 24 pin FPC seat
• GPIO: 2.54 mm pitch 30 pin-header
• I2S/USB: 2.54 mm pitch 14 pin-header
• Serial Debug Port: 2.54mm pitch 4-pin-header
• User Key: power, Reset, boot selection
• LED: 1 x power LED and 1 x system LED
• Other Resources: CPU’s internal TMU
• RTC Battery: RTC Battery Seat

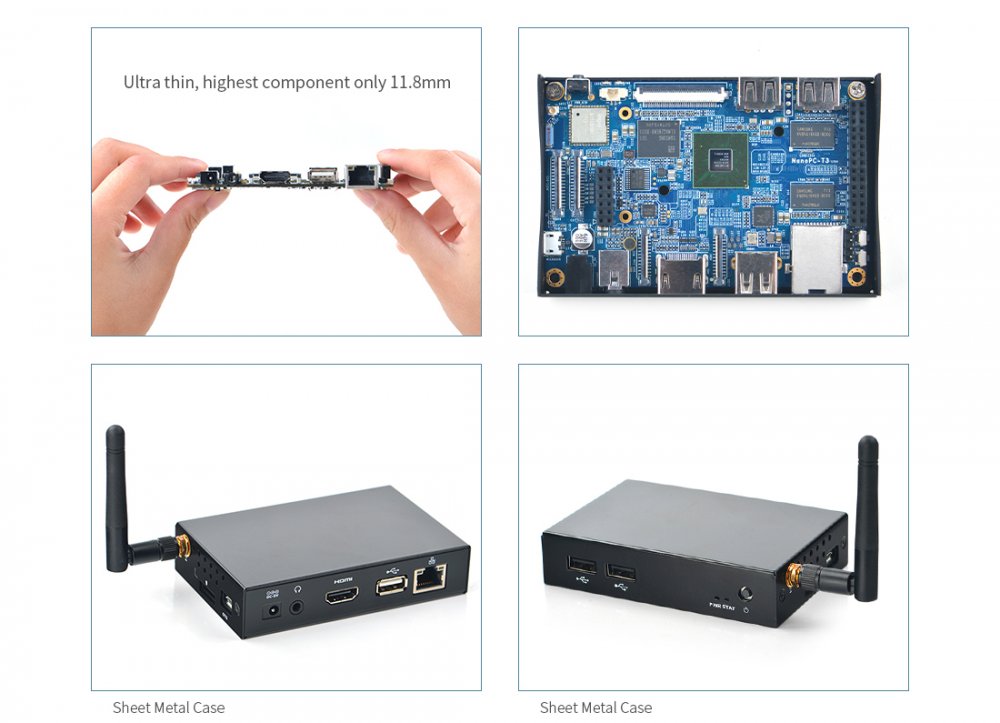

• Heat Sink: 1 x Heat Sink with mounting holes
• Power: DC 5V/3A
• PCB: Six Layers

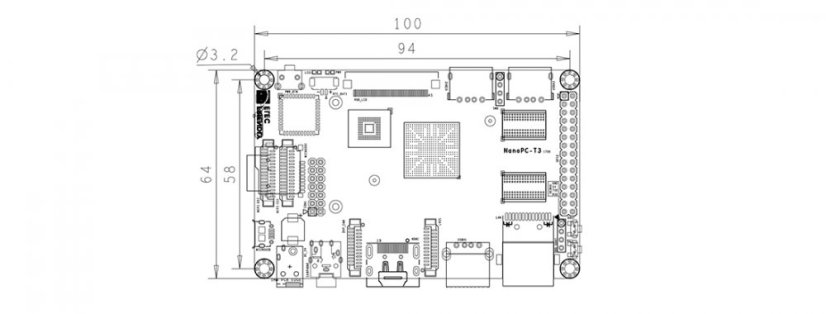

• Dimensions: 100 mm x 64 mm (3.94 in x 2.52 in)
• Working Temperature: -40℃ to 80℃

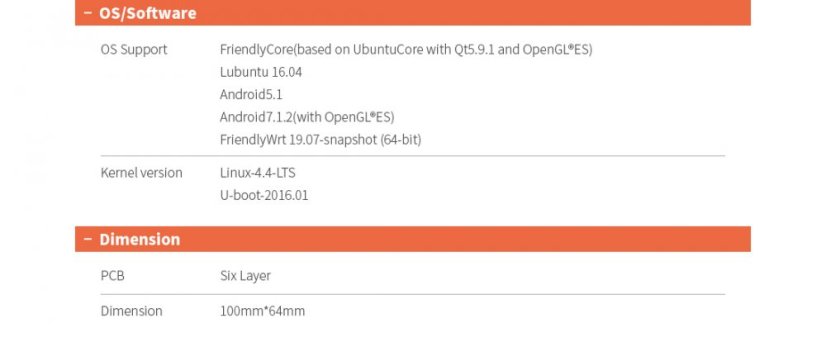

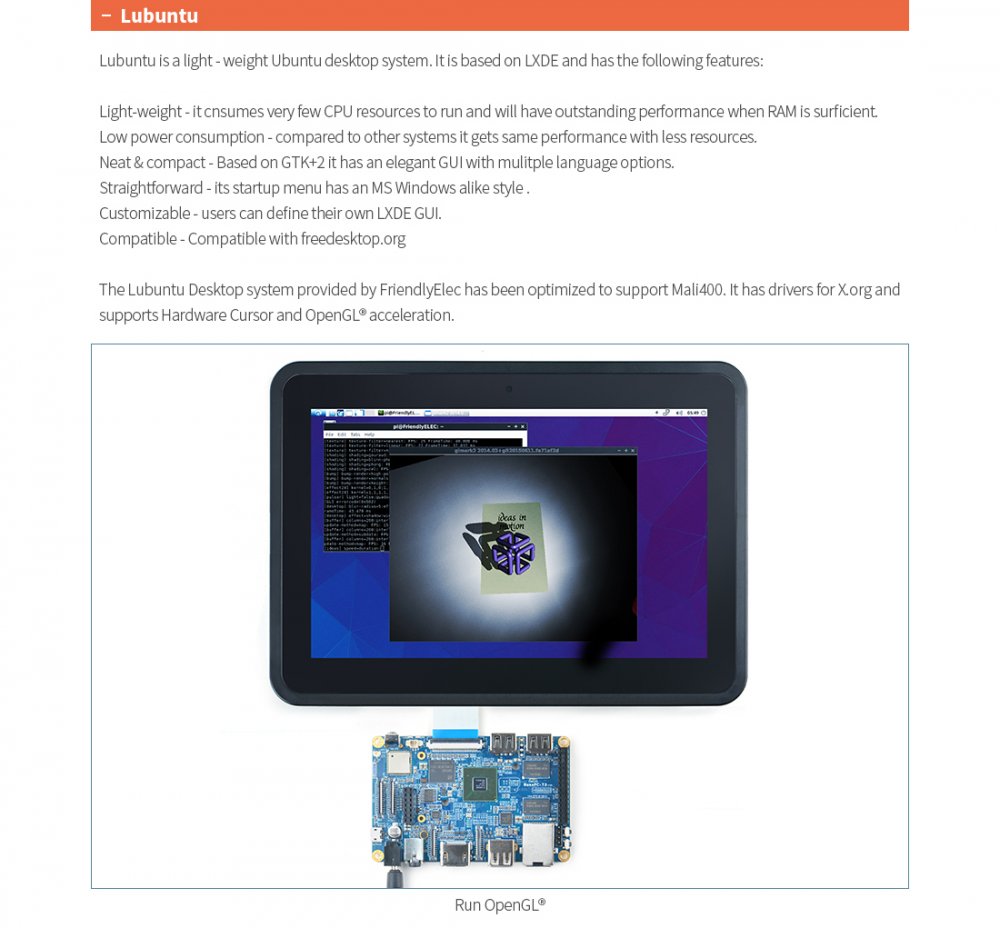

• OS/Software: uboot, Android and Debian

Package Contents:

1x NanoPC T4

2x Antenna

These open source boards are supplied without a manual and support. All necessary information can be found on the FriendlyARM wiki page.

Related Resources

Wiki: http://wiki.friendlyarm.com/wiki/index.php/NanoPC-T4
