NanoPi Fire3 Development Board S5P6818 with 1GB DDR3 RAM

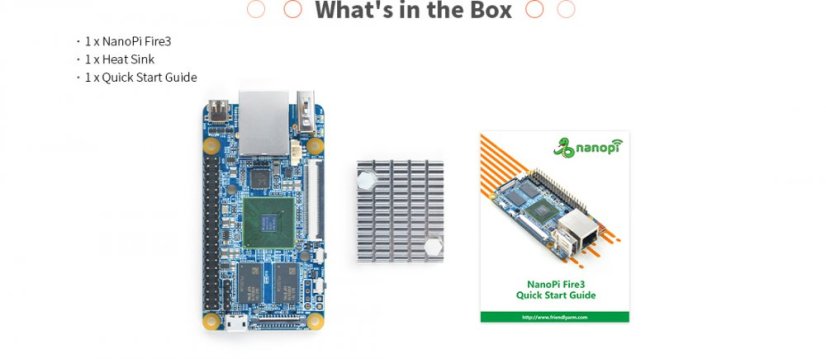

NanoPi Fire3 Development Board S5P6818 with 1GB DDR3 RAM - Kit with Heat Sink

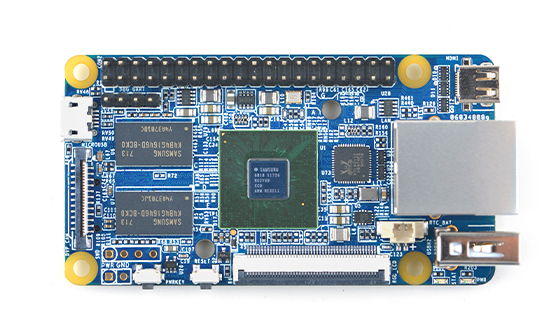

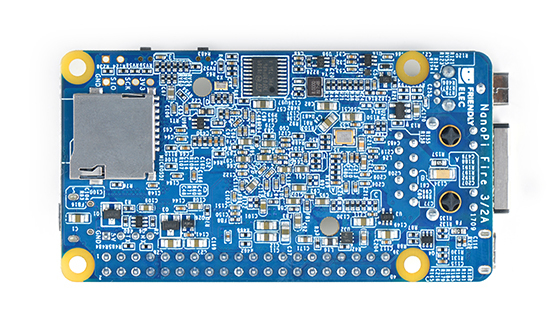

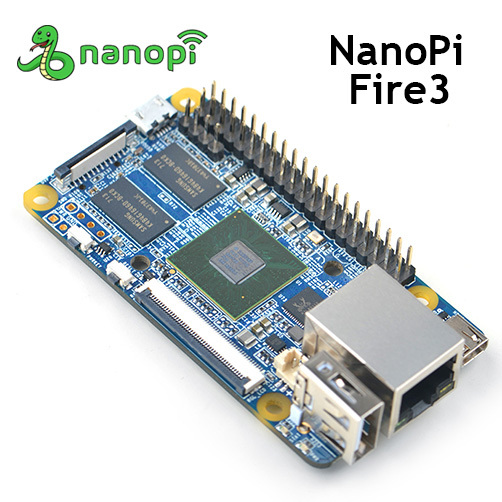

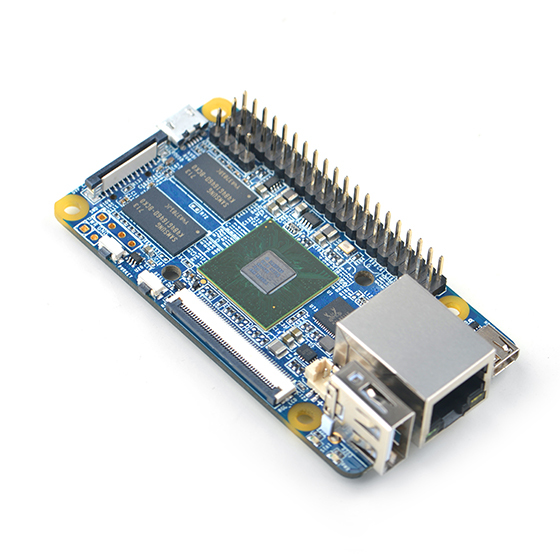

The NanoPi Fire3 is a high-performance ARM board developed by FriendlyElec for enthusiasts, creators, and hackers for IoT projects. It features a Samsung Cortex-A53 Octa Core S5P6818@1.4GHz SoC and 1GB 32-bit DDR3 RAM. It includes a gigabit Ethernet port and boots from Android and Debian on a TF card. It integrates HDMI and LCD interfaces. With the Raspberry Pi GPIO pin header, it is compatible with external Raspberry Pi GPIO modules and Arduino shield boards. The dimensions of the PCB are 75 x 40 mm.

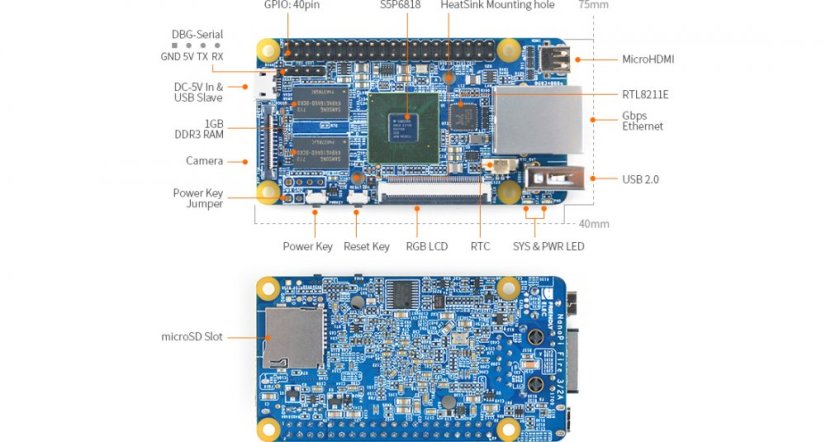

Specifications:

• CPU: S5P6818, 1.4GHz
• RAM: 1GB DDR3
• Connectivity: Gigabit Ethernet port
• PMU Power Management: Realized with Cortex-M0 MCU, supporting software shutdown and RTC alarm wake-up
• USB 2.0 Type A x 1
• Debug Serial Port/UART0 x 1
• microSD Slot x 1
• microUSB x 1: for data transfer and power supply

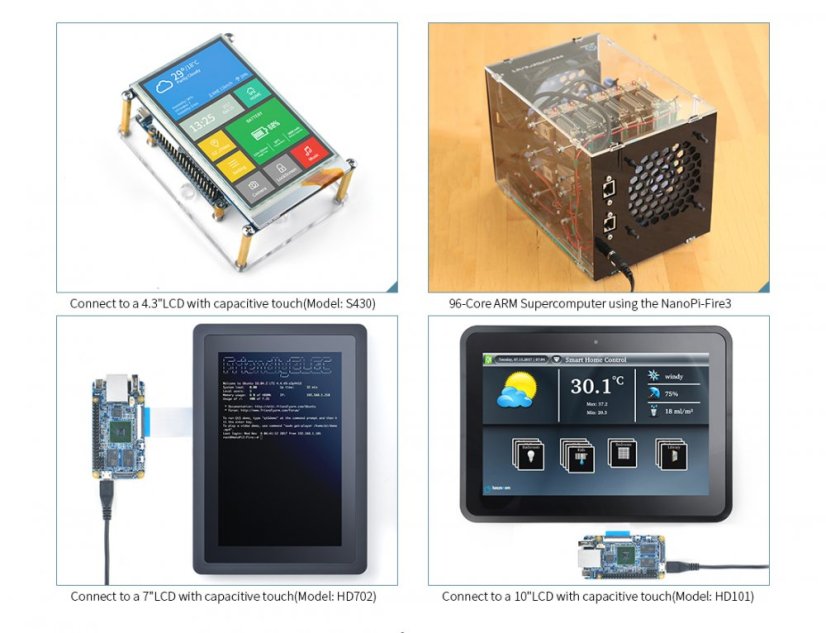

• LCD Interface: SMT FPC connector with a pitch of 0.5 mm, for full-color LCD (RGB: 8-8-8)

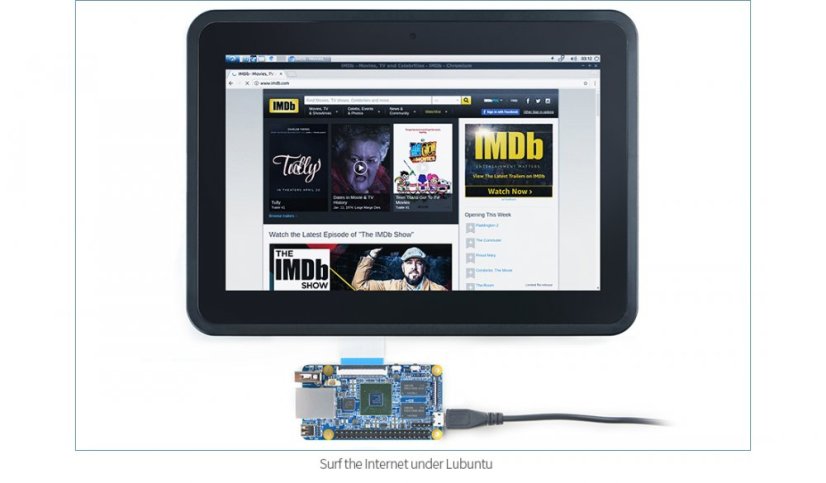

• HDMI: HDMI 1.4A, microHDMI (Type-D), 1080P60
• DVP Camera Interface: FPC connector with a distance of 0.5 mm. Includes ITU-R BT 601/656 8bit, I2C, and IO
• GPIO: 40-pin with a pitch of 2.54mm, compatible with Raspberry Pi GPIO. Includes UART, SPI, I2C, PWM, IO, etc.
• Button: Power Button x 1, Reset Button x 1
• LED: Power Indicator LED x 1, System LED x 1
• RTC: RTC Battery Seat

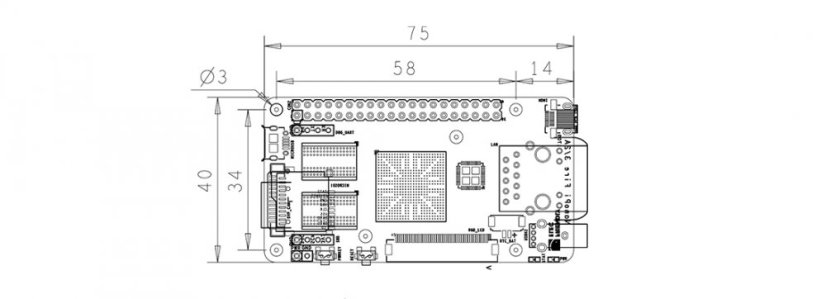

• PCB Dimension: 75 x 40mm
• Power: DC 5V/2A
• Temperature Measurement Range: -20°C to 80°C

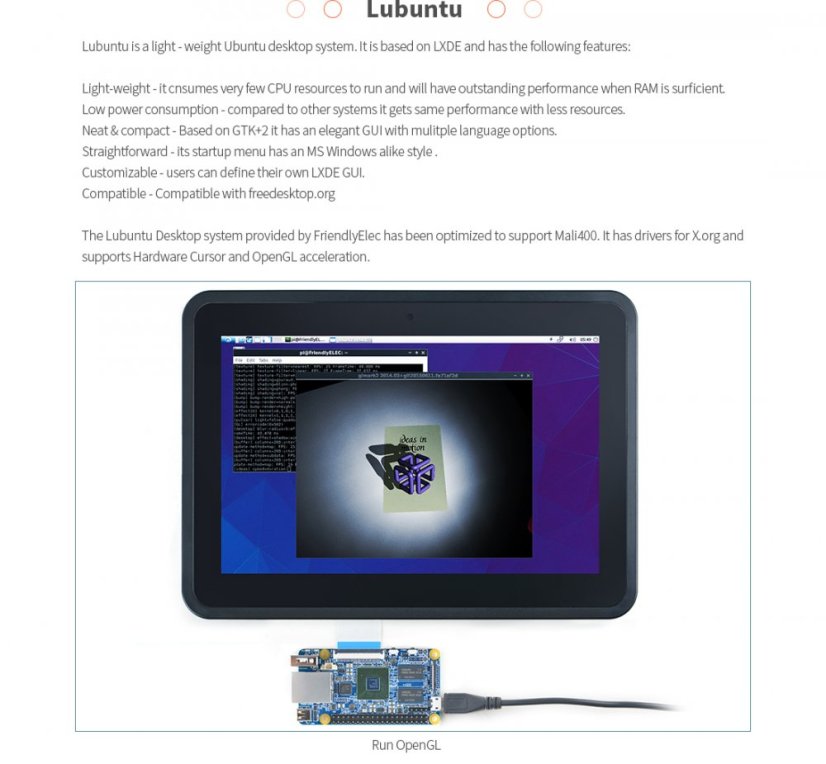

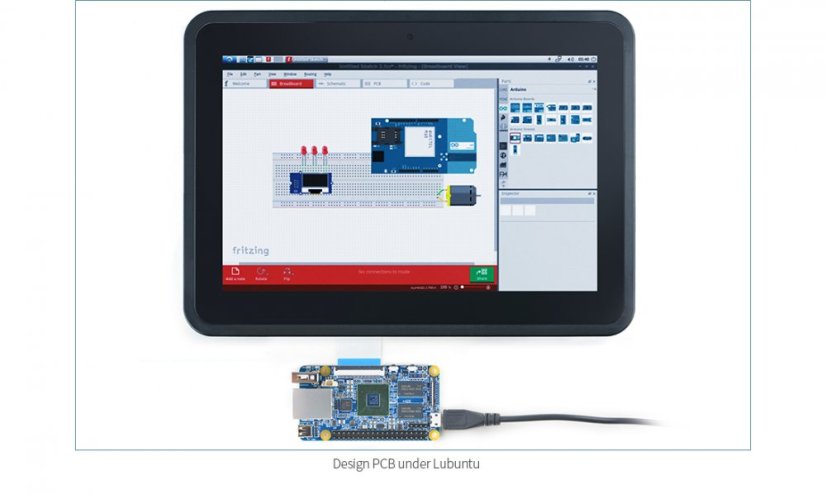

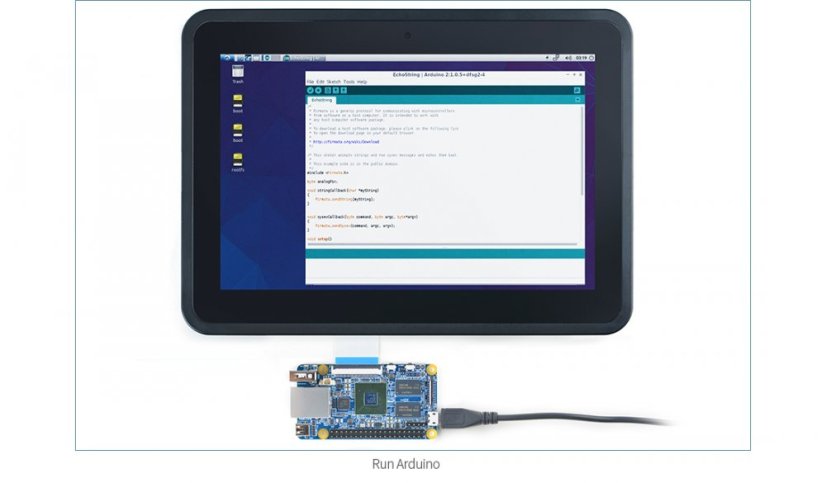

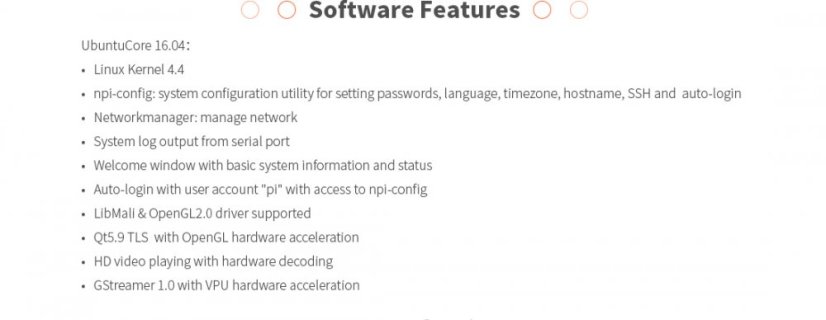

• OS: Android, Debian, and FriendlyCore (Linux Kernel 4.4 + Qt 5.10.0 + OpenGL2.0)
