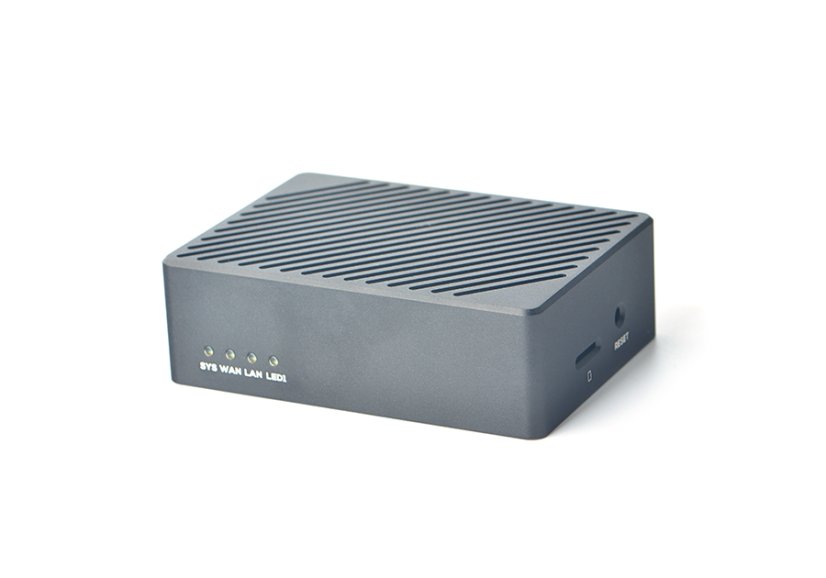

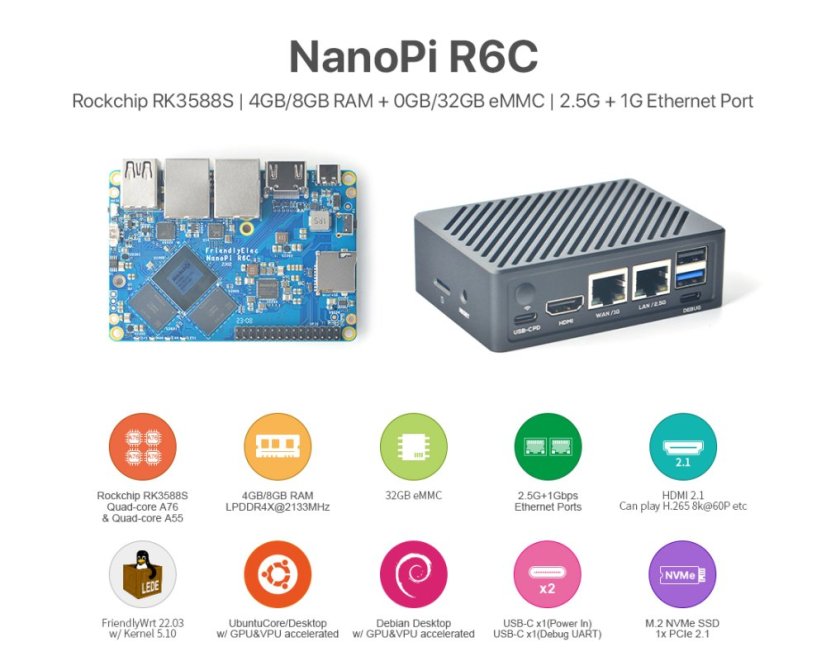

NanoPi R6C Mini-Router 8GB RAM, 32GB eMMC

NanoPi R6C

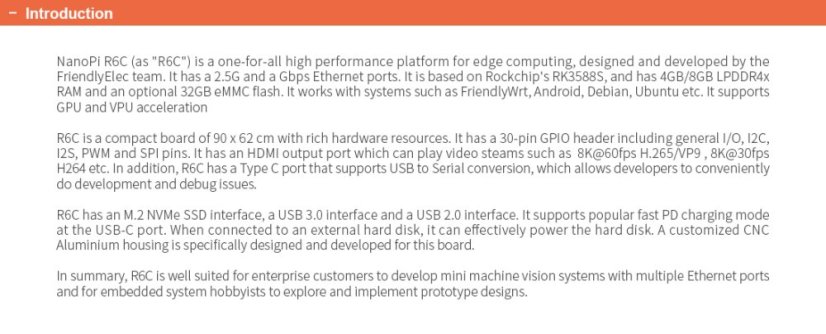

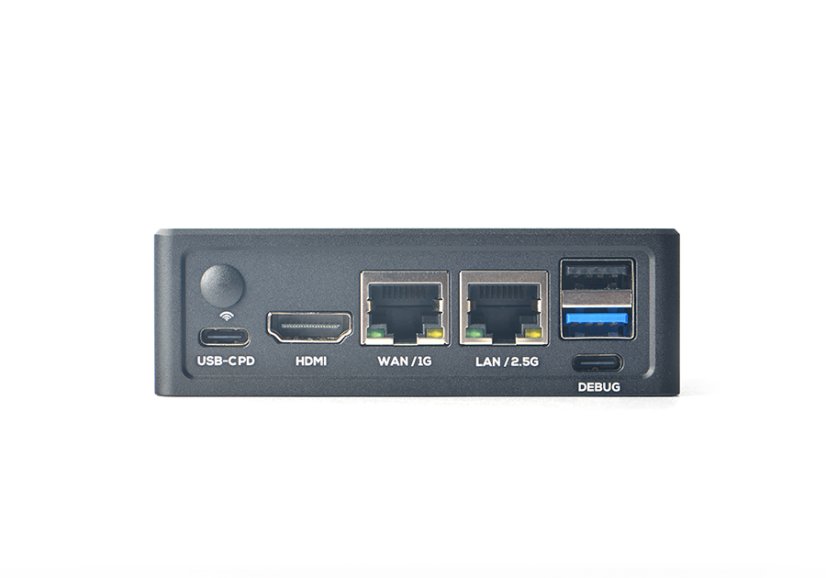

The NanoPi R6C is a top-tier mini-router from FriendlyElec, featuring edge computing capabilities and two 2.5Gbps Ethernet ports. Its dimensions are 68x94.5x30mm. Power can be supplied through the PD port or USB Type C. It operates with FriendlyWrt, Ubuntu, Armbian, and more.

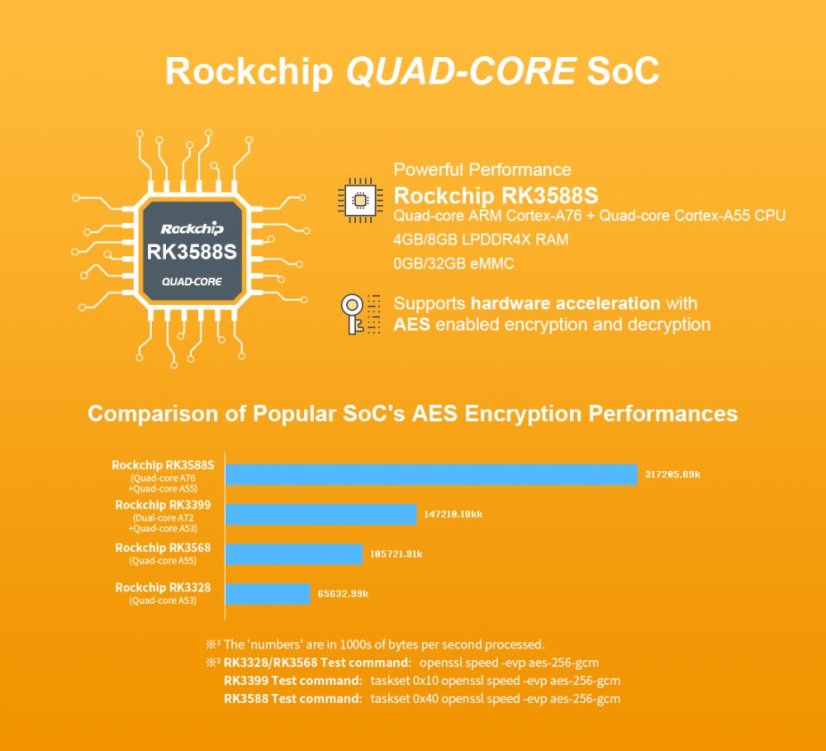

The NanoPi R6C utilizes the high-performance RK3588S SoC from Rockchip. The clock frequency can reach up to 1.8 GHz. It comes with 8GB LPDDR4X RAM and integrated 32GB eMMC storage. Additionally, it has two USB 3.0 ports that can connect to external hard drives, 4G modules, USB HD cameras, USB WiFi modules, and more.

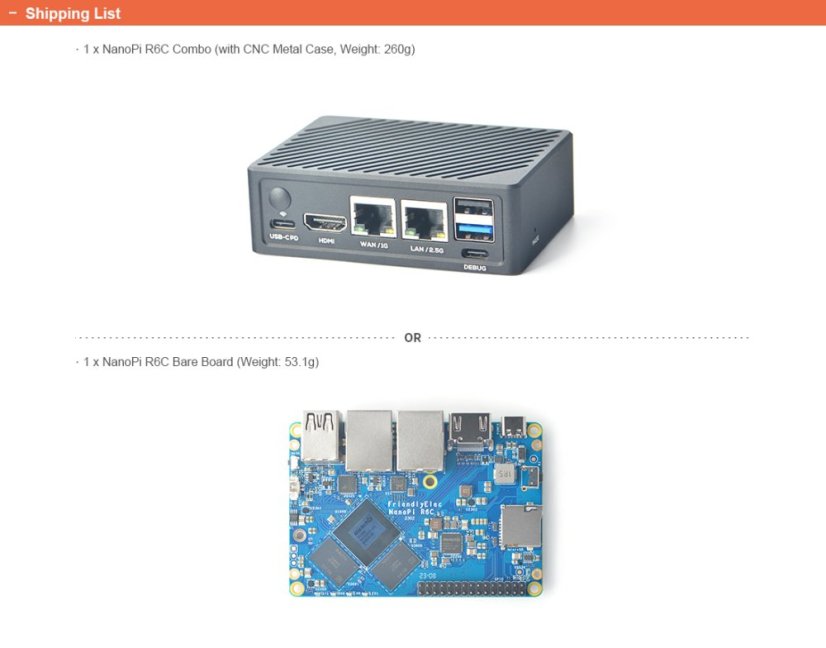

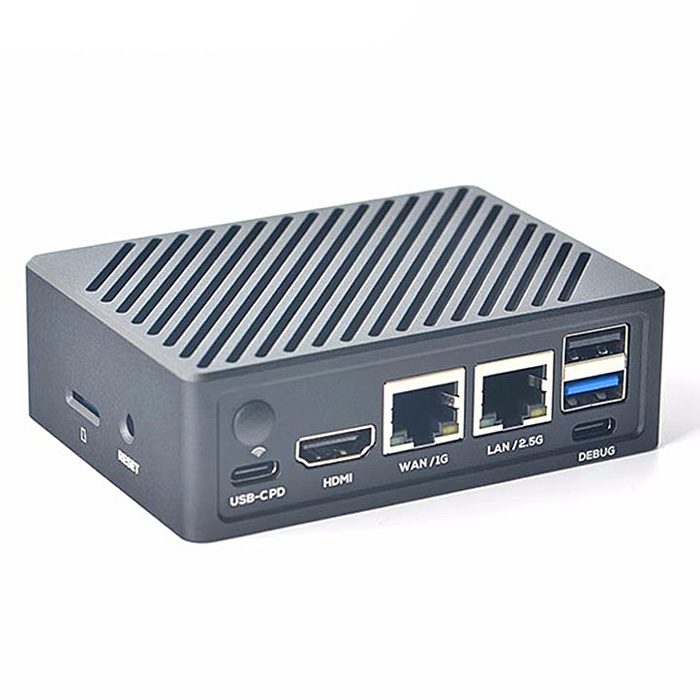

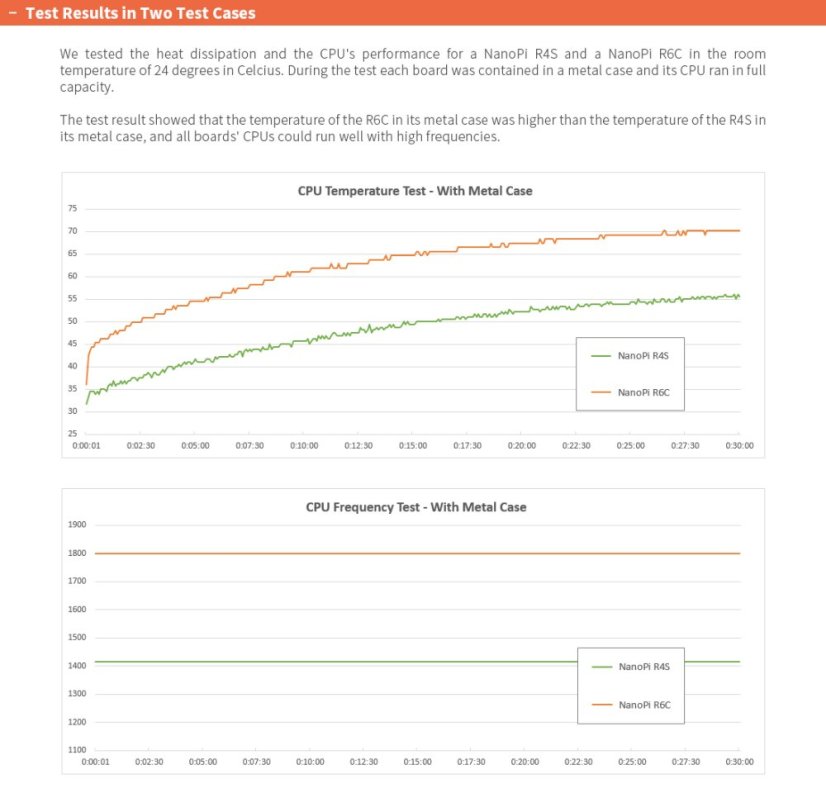

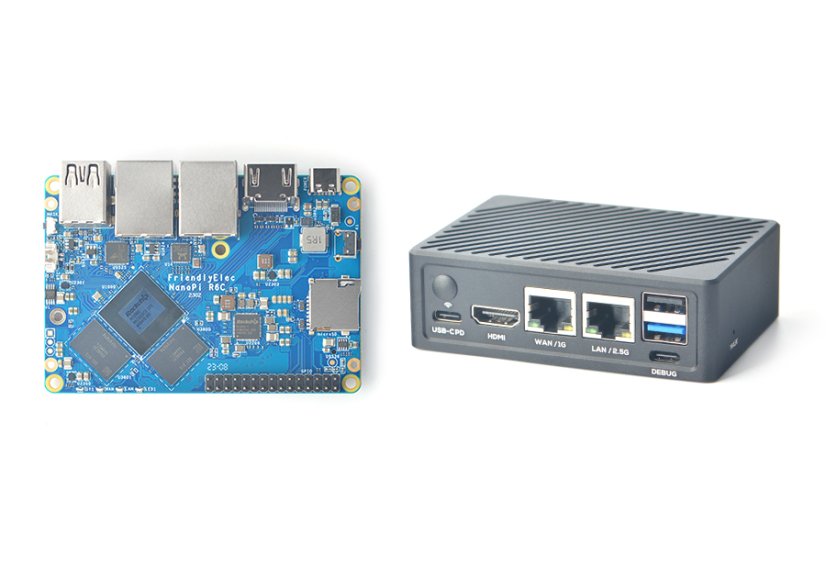

FriendlyElec has released a special CNC metal case for the NanoPi R6C. This metal case provides excellent heat dissipation. During testing, the NanoPi R6C operated smoothly within this metal case without any frequency throttling.

Specifications:

• Model: R6C
• SoC: Rockchip RK3588S
  • CPU: RK3588S Quad-core ARM Cortex-A76 & Quad-core Cortex-A55
  • GPU: Mali-G610 MP4, compatible with OpenGLES 1.1, 2.0, and 3.2, OpenCL up to 2.2, and Vulkan 1.2
  • VPU: 4KP60 H.265/H.264/VP9 video decoder, 1080P60 H.264/H.265 video encoder
  • NPU: 6TOPs, supports INT4/INT8/INT16/FP16
• RAM: 8GB LPDDR4X 2133MHz
• Flash: 32GB eMMC at HS400 mode
• PCIe: M.2 M-Key, PCIe2.1 x1, support for NVME, PCIe WiFi, etc.
• Ethernet: 3x 2.5 Gigabit Ethernet, 1x RTL8211F-CG chip + 1x RTL8125BG PCIe chip
• Wi-Fi/BT: No
• Video Input: No
• Video Output: HDMI, supports HDMI1.4 and HDMI2.0
• Audio Output: No
• Audio Input: No
• USB:
• 1x USB 3.0 Host Type A
• 1x USB 2.0 Host 2.54mm 4pin-header
• 1x USB Type-C: Power only
• microSD Slot x 1 (128GB max), LAN1 LED(Green), LAN2 LED(Green)

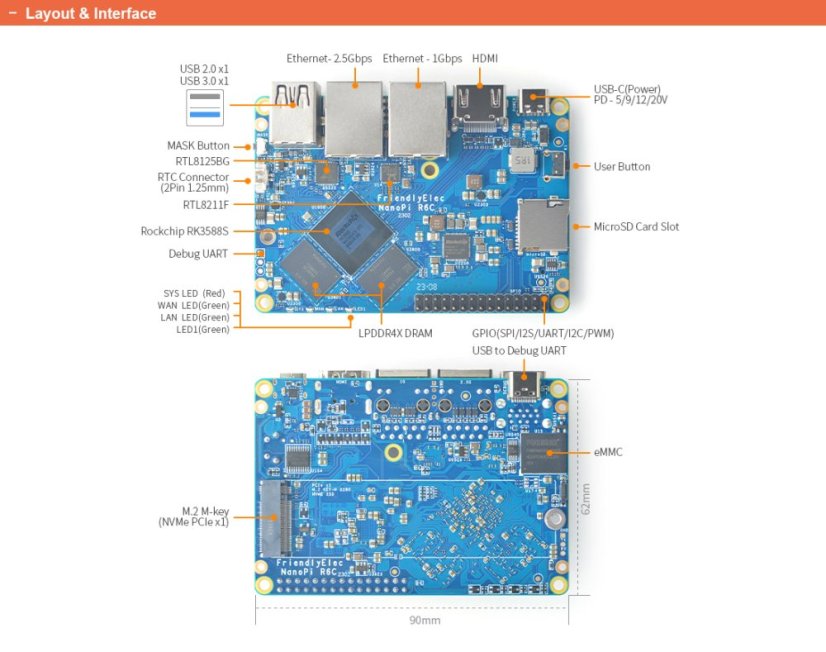

• 30-pin 0.5mm FPC connector, up to 1x SPI, 3x UARTs, 3x I2Cs, 2x SPDIFs, 1x I2Ss, 3x PWMs, 20x GPIOs
• Debug: one Debug UART, 4 Pin 2.54mm header, 3V level, 1500000bps
• LED: SYS LED(Red), WAN/LAN LED(Green) x3
• RTC Battery: 2 Pin 1.27/1.25mm RTC battery input connector
• Power Supply: USB-C 5V/3A
• Operating Temperature: 0℃ to 70℃

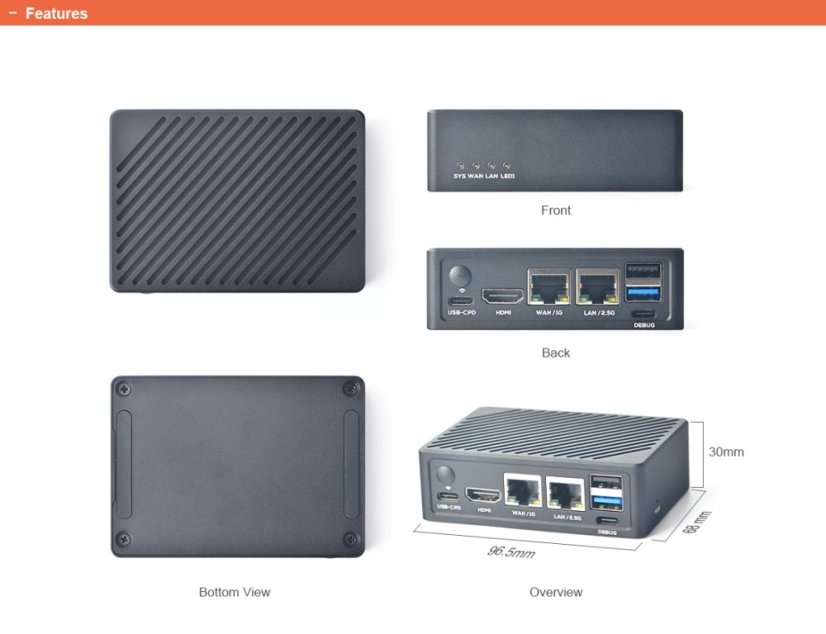

• Dimensions: 68x94.5x30mm (with case)

• Weight: 260g (with case)

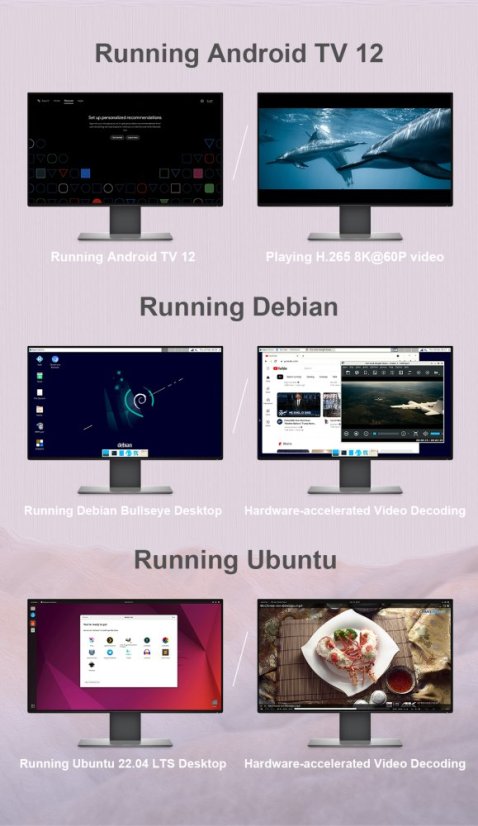

Supported OS: FriendlyWrt 21.02, FriendlyWrt 22.03, Android 12 Tablet, Android 12 TV, FriendlyCore Lite 20.04, Debian 10 Desktop, Debian 11 Desktop Buildroot
