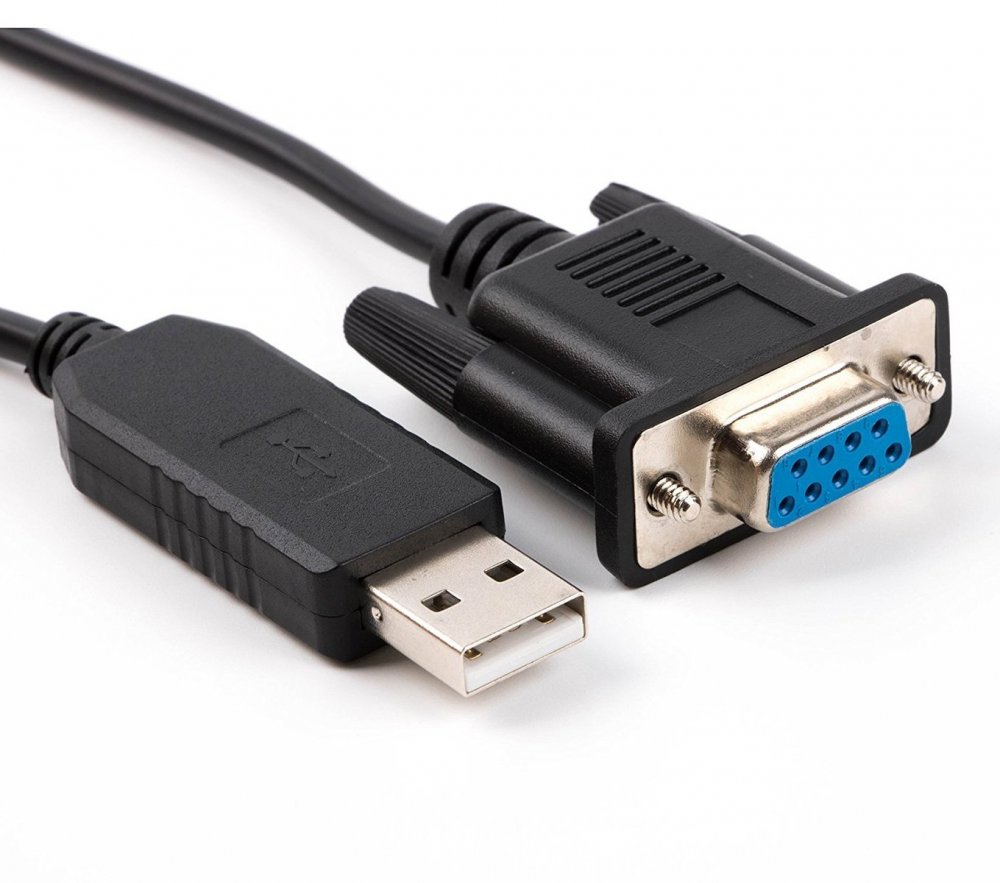

Original USB to DB9 RS232 Rollover Null Modem FTDI FT230XS

Warning: This is RS232, NOT TTL. RS232 is not TTL!

Features:

• Model: SN-062358-ft232rl-zt213

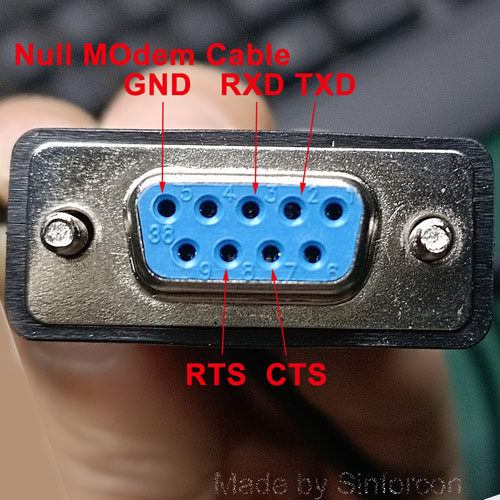

• Connector Type: DB9 - Null Modem/Crossover/2TX 3RX 5GND 7CTS 8RTS
• Based on chip FTDI FT232 Original
• TTL to RS232 chip Zywyn ZT213LEEA
• FTDI USB/Serial Interface adapter
• Powers directly from USB, no additional power source required.
• USB-RS232-WE-1800-BT compatible
• Signals on board: CTS, RTS, RXD, TXD, DCD, RI, DSR, DTR, GND, VCC5v
• Data transfer speeds from 300 baud to 1Mbaud
• Cable: 175 cm, 24AWG * 6 wires, PVC sheath, black, copper
• Supports Android, supports Win 10, Win 8, Win 7, XP, 2000, Linux, Mac OS
• Integrated 1024-byte EEPROM with user-writable space
• Supports Vendor ID re-write, supports Mprog3.5, supports FT_prog
• Supports FTDI VCP driver and D2XX driver
• Supports VCC = 5v from USB
• Net Weight: 78g/unit
• CE, RoHS certified

Drivers: FTDI D2XX Drivers

USB driver installation simplified: Zadig
