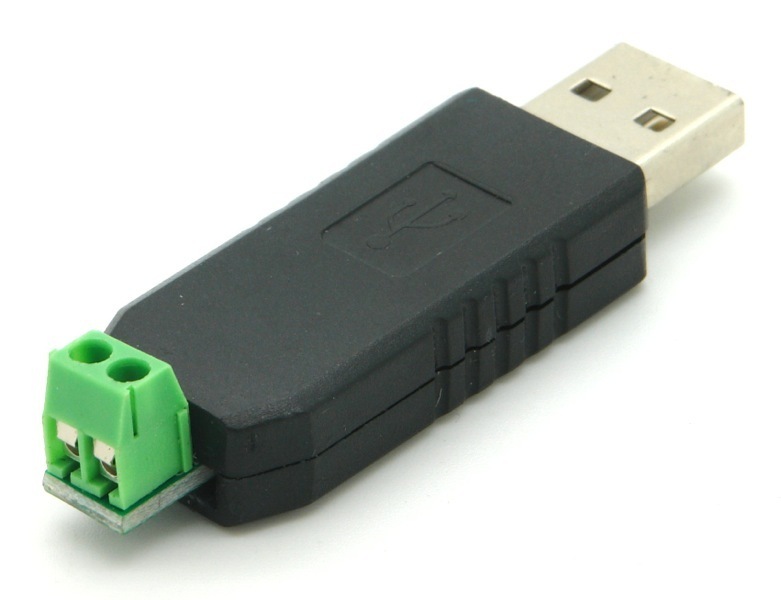

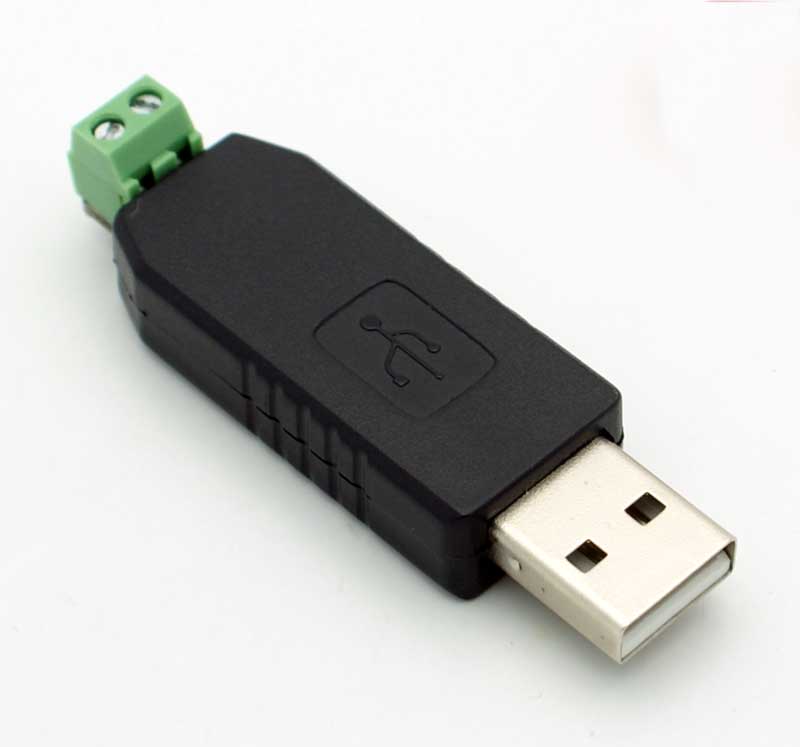

USB RS-485 Adapter CH340 for PC

USB RS-485 Adapter CH340 for PC

Specifications:

• Supported systems: Windows 10/11, Vista, Windows 7, Linux, MacOS, and WinCE 5.0
• Supported baud rates: 300 bps to 9216000 bps, up to 6 Mbps
• Automatic flow control

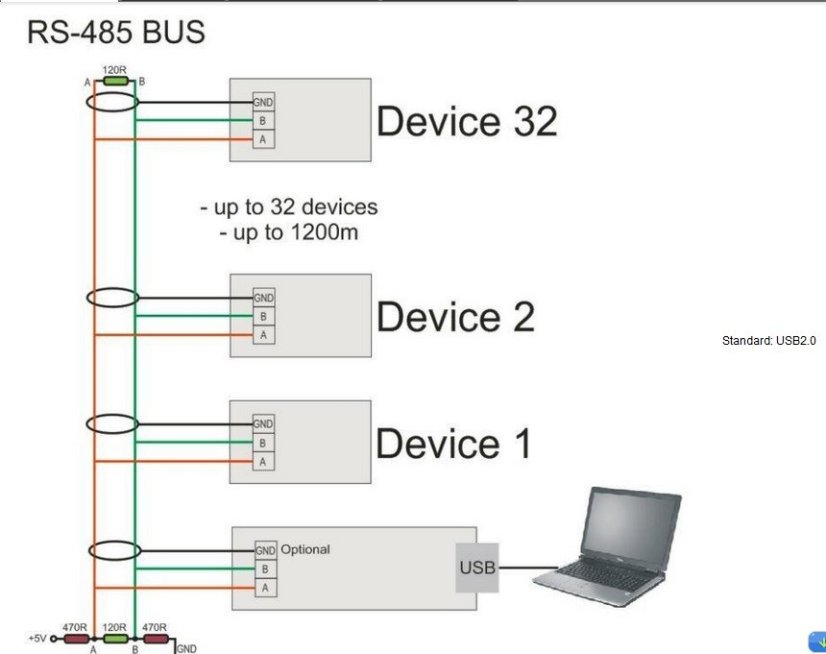

• Connect up to 32 RS-485 devices
• Fully compatible with USB 2.0, backward compatible with USB 1.1
• Interface protection: TVS protection for USB
• Operating temperature range: -40°C to +85°C
• Communication distance: up to 1200m
• Dimensions: 6.1 x 1.6 x 1.3 cm
• Color: Black

Usage: USB to RS-485, DMX / DMX512,

Electronic components on the board:

• CH340 USB to serial UART chip
• MAX485 - low power RS-485 transceiver
