NanoPi M6

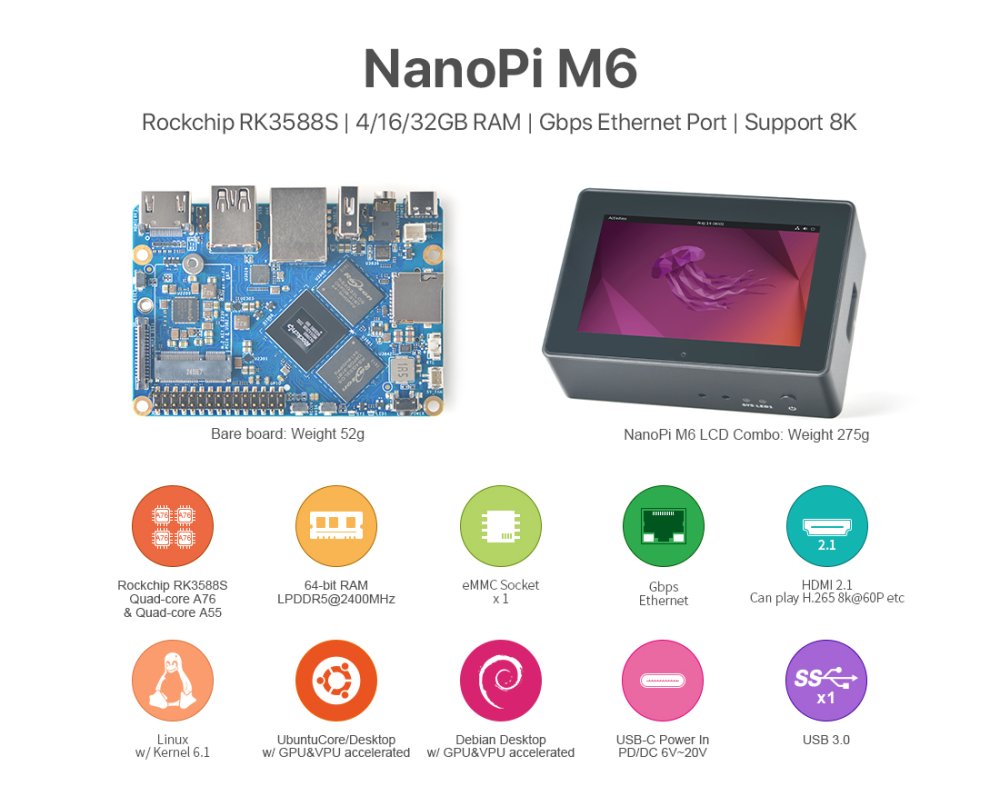

NanoPi M6 Single Board Computer

The NanoPi M6 is a high-performance single-board computer designed for advanced embedded, industrial, multimedia, and networking applications. Built around a powerful 64-bit octa-core ARM processor, it delivers desktop-class performance in a compact form factor while maintaining low power consumption.

Thanks to its advanced GPU, high-speed memory support, and rich I/O connectivity, the NanoPi M6 is well suited for edge computing, AI acceleration, multimedia processing, network appliances, industrial control systems, and development platforms. Support for high-resolution video output, fast storage interfaces, and multiple operating systems makes it a flexible solution for both prototyping and deployment.

Specification

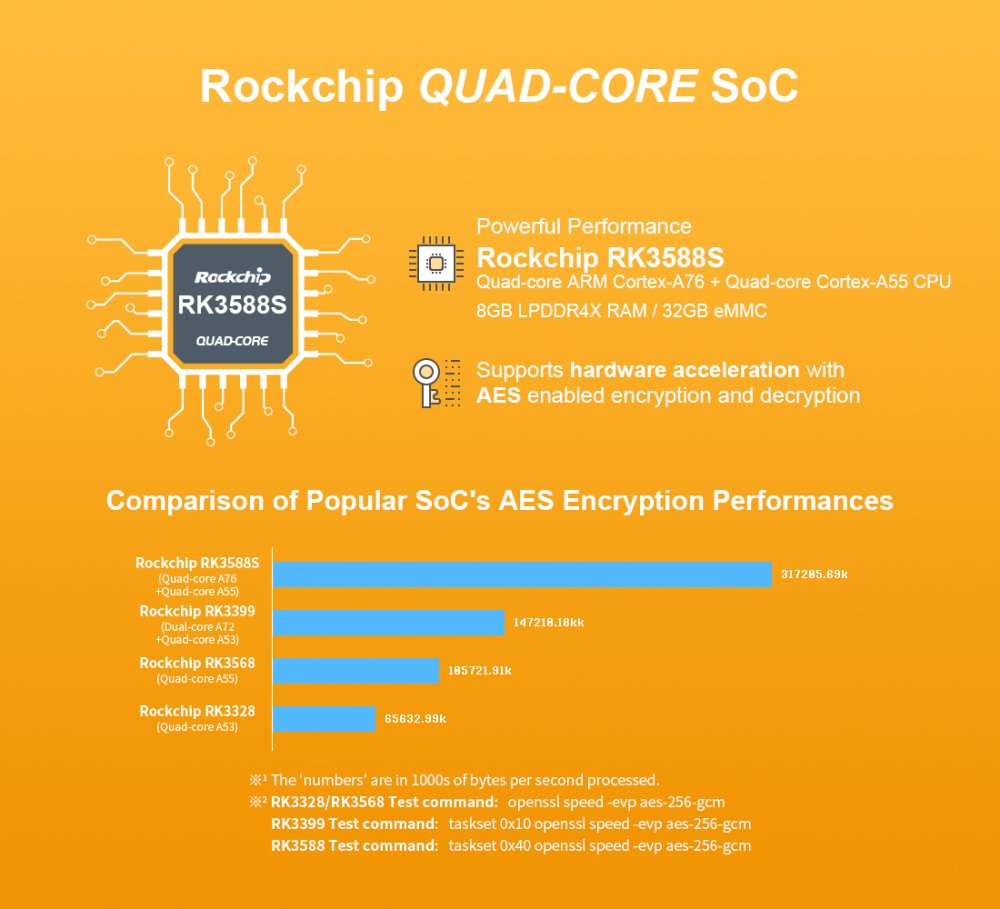

• CPU: Rockchip RK3588S, 4× ARM Cortex-A76 up to 2.4 GHz + 4× Cortex-A55 up to 1.8 GHz

• GPU: Mali-G610 MC4, OpenGL ES 1.1/2.0/3.2, OpenCL 2.2, Vulkan 1.2

• VPU: Decode: 8K@60 H.265, 8K@30 H.264, 4K@60 AV1; Encode: 8K@30 H.264/H.265

• NPU: 6 TOPS, INT4/INT8/INT16/FP16

• Memory: 4GB / 16GB / 32GB LPDDR5 (64-bit, 2400 MHz)

• Storage: MicroSD (SDR104), eMMC socket (HS400), M.2 M-Key 2280 (PCIe 2.1, NVMe)

• Network: Gigabit Ethernet (RTL8211F), M.2 E-Key 2230 for Wi-Fi/BT (PCIe 2.1 + USB 2.0)

• Video In: 2× 4-lane MIPI-CSI (v1.2 + D/C PHY)

• Video Out: HDMI 2.1/2.0/1.4 up to 8K@60, RGB/YUV 10-bit, 2× MIPI-DSI (DPHY 2.0/CPHY 1.1)

• USB: 1× USB 3.0, 2× USB 2.0 (Type-A)

• Audio: 3.5 mm headphone jack, 2.0 mm analog mic input

• GPIO: 30-pin 2.54 mm (SPI, 6× UART, 3× I²C, SPDIF, 4× PWM, 20× GPIO)

• Debug: UART 3-pin, 3 V, 1.5 Mbps

• LEDs: SYS (Red), LAN (Green)

• Buttons: Power, Reset, Recovery, MASK (eMMC)

• Other: RTC battery input, 5 V fan connector

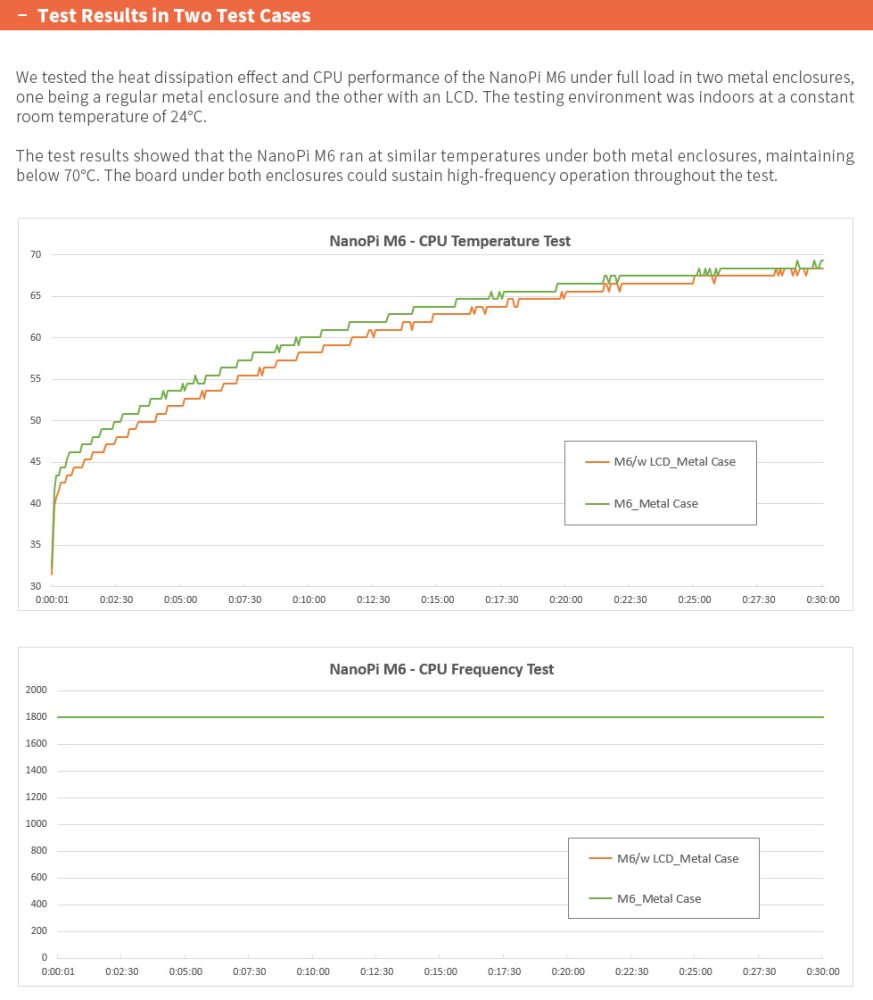

• Operating Temp: 0–70 °C

• Power: USB-C 6–20 V (PD/DC), 65 W recommended at full load
