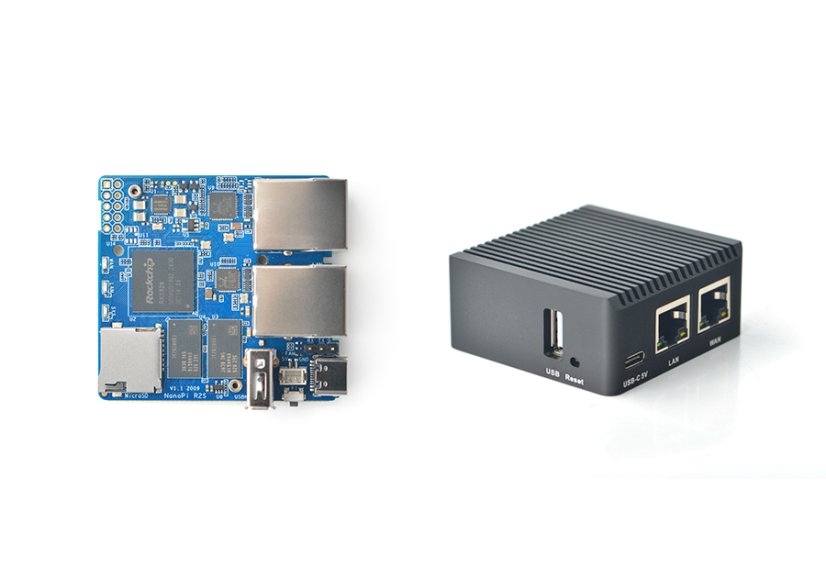

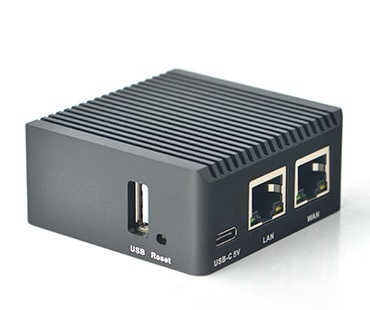

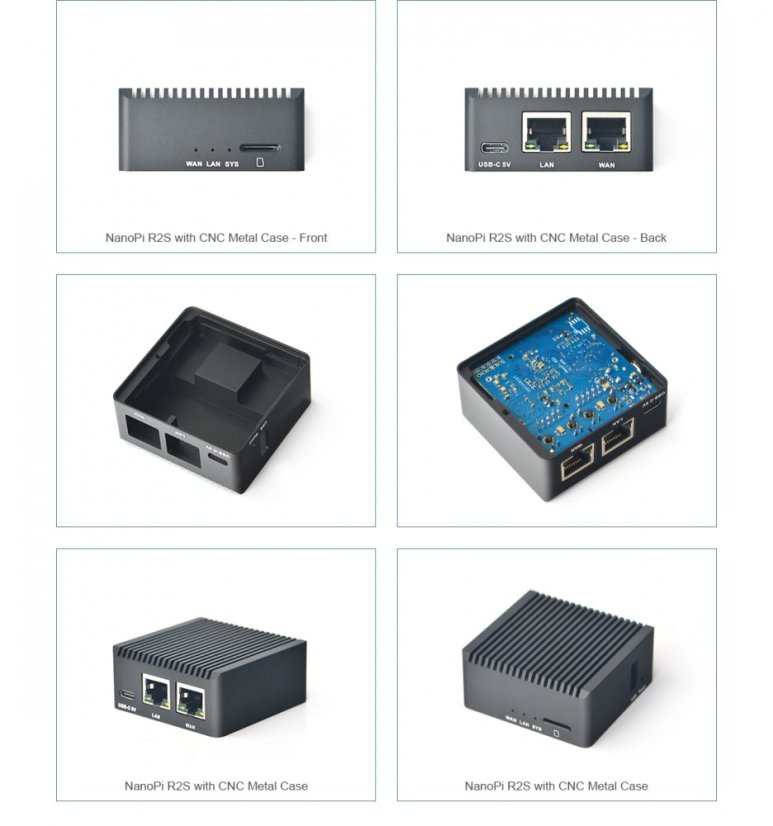

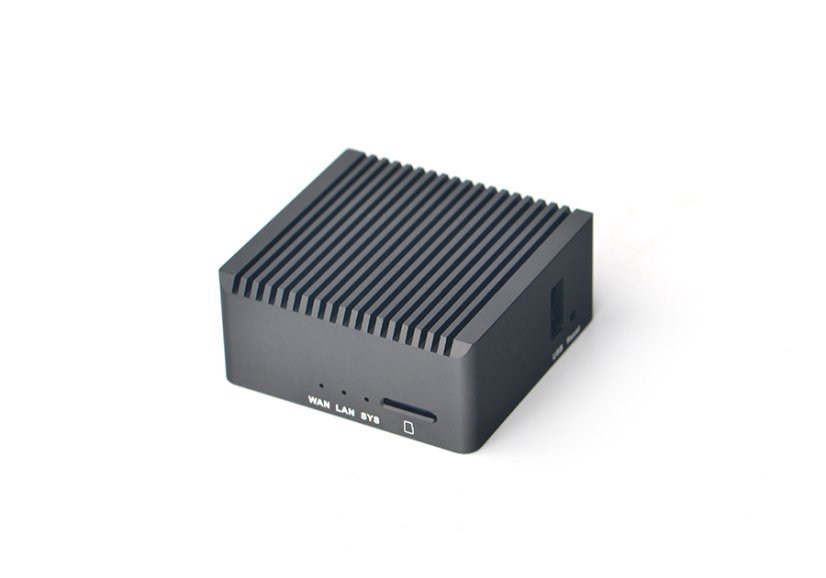

NanoPi R2S Combo with Case

NanoPi R2S Dual GbE IoT Board and Gateway

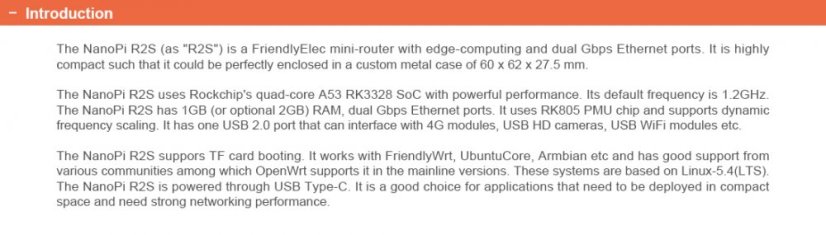

The NanoPi R2S (referred to as 'R2S') is an open-source platform featuring dual Gbps Ethernet ports designed and developed by FriendlyElec for IoT applications.

It utilizes the RK3328 SoC with two Gbps Ethernet ports and 1GB DDR4 RAM. The R2S runs on OpenWrt and is compatible with Docker CE, making it a suitable platform for developing IoT applications, NAS systems, smart home gateways, and more.

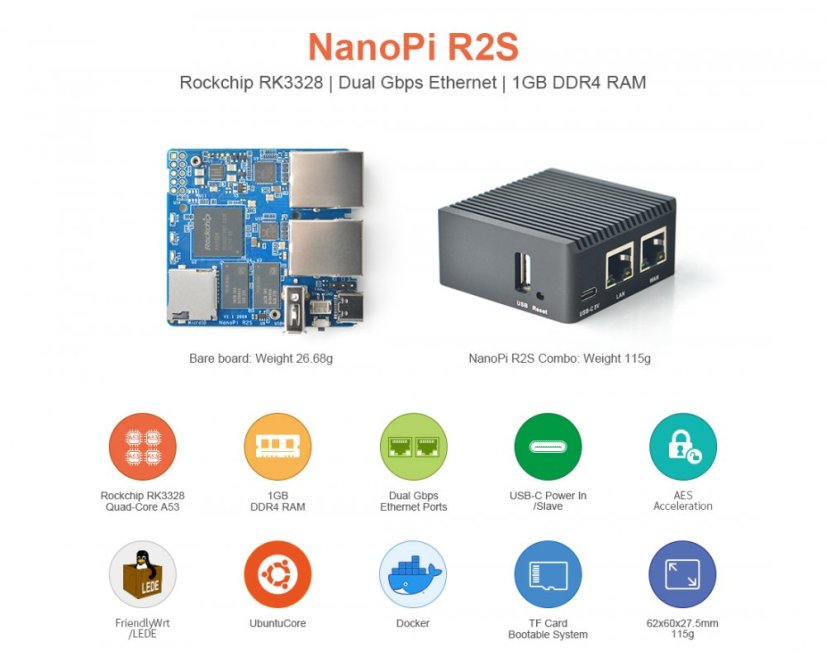

• SoC: Rockchip RK3328 quad-core Cortex-A53 @ 1.5 GHz with Arm Mali-450MP2
• System Memory: 1GB DDR4 RAM
• Storage: MicroSD slot, SPI flash footprint
• Connectivity

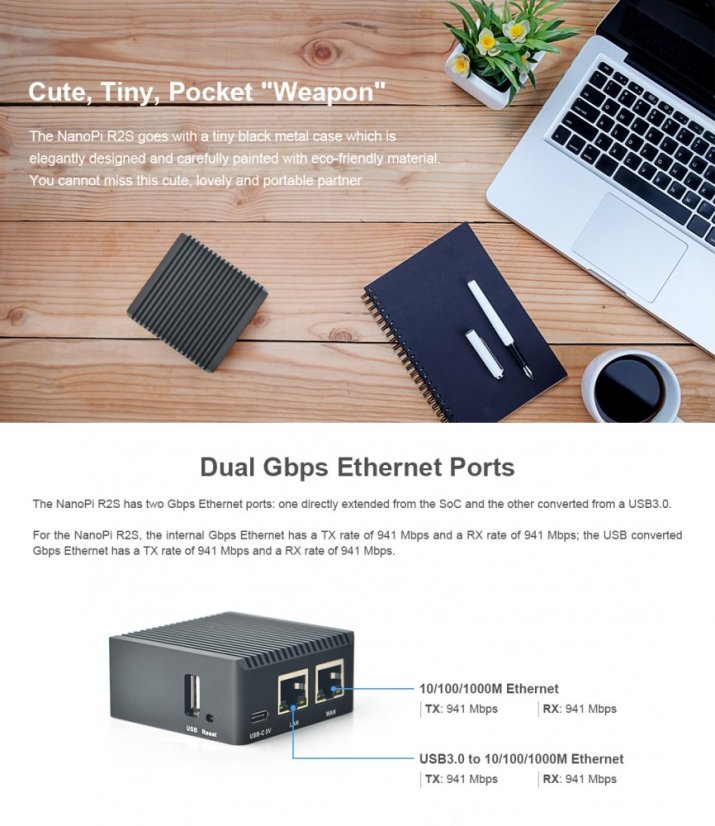

  • 1x Gigabit Ethernet (WAN) up to 941 Mbps (measured)
  • 1x Gigabit Ethernet (LAN) up to 941 Mbps (measured) via Realtek RTL8153 USB 3.0 to Ethernet driver

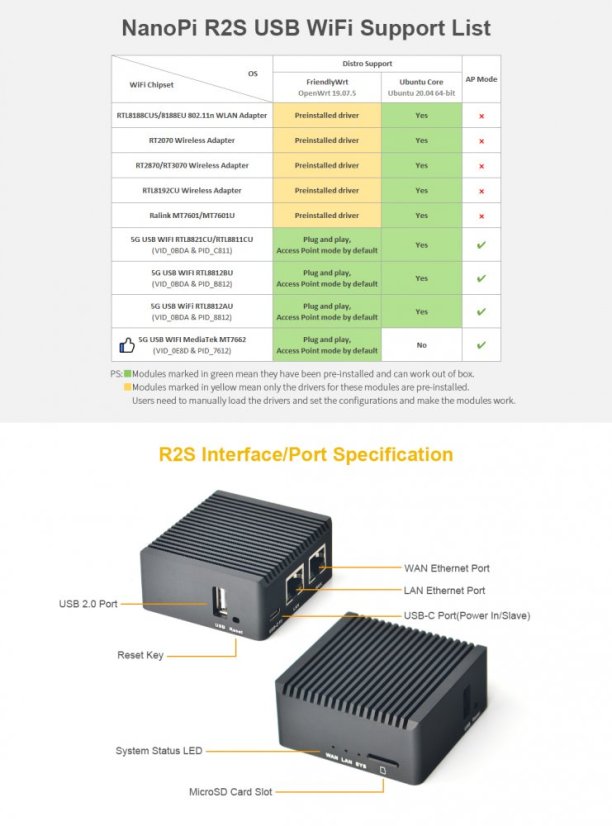

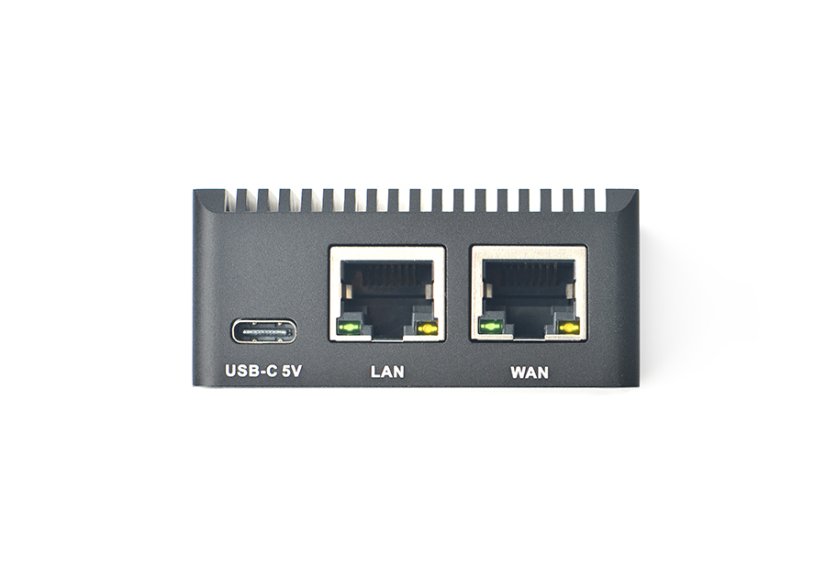

• USB: 1x USB Type-A host port, 1x USB Type-C port (power + slave)
• Debugging: 3-pin 2.54mm pitch header for serial console
• Expansion: 10-pin GPIO header with GPIOs, I2C, UART, IR_Rx, 5V, 3.3V, and GND

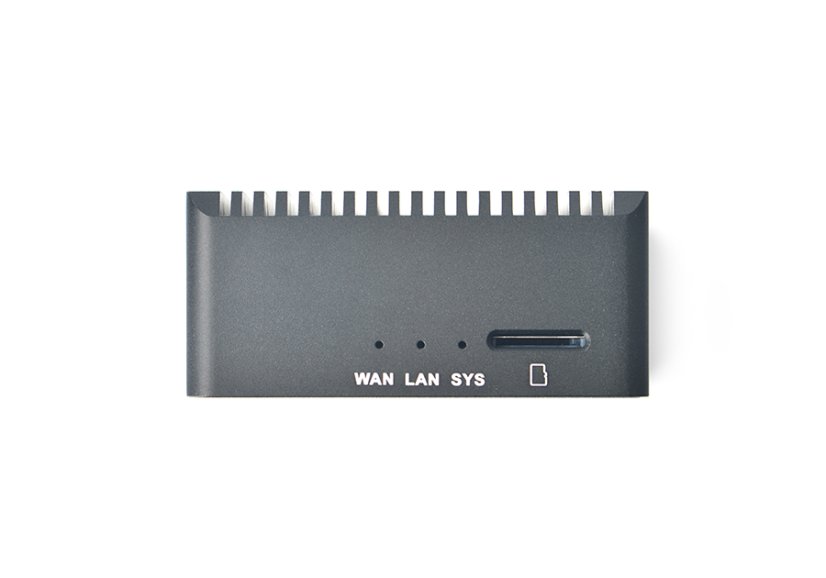

• Miscellaneous: 3x LEDs (WAN, LAN, SYS), K1 reset button, fan controller
• Power: 5VDC/2A via USB-C port

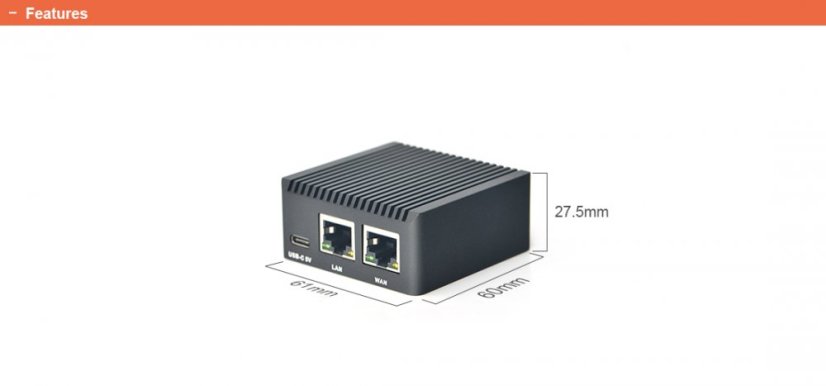

• Dimensions: 55.6 x 52mm
• Operating Temperature Range: -20℃ to 70℃
