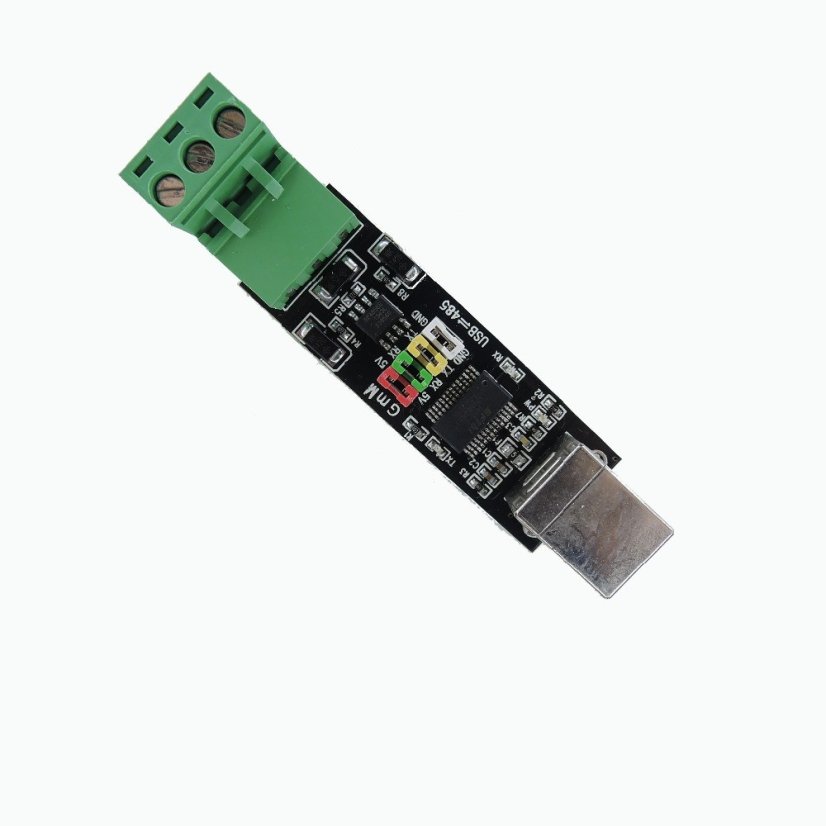

USB RS-485 Adapter FT232RL for PC

USB RS-485 Adapter FT232RL for PC

Add to favourites Add to compare list

USB RS-485 Adapter FT232RL for PC

USB to RS-485 adapter with FT232RL chip, supports multiple operating systems and high-speed data transfer. More
Manufacturer: NEVEN Product code: 10068 Shipping and payment
12,40 EUR incl. VAT
in stock (8 ks)
USB to RS-485 adapter with FT232RL chip, supports multiple operating systems and high-speed data transfer. More
Manufacturer: NEVEN Product code: 10068 Shipping and payment

Specifications:

  • Supported systems: Windows XP, Vista, Windows 7, Linux, MacOS, and WinCE 5.0
  • Supported baud rates: 300 bps to 9216000 bps, up to 6 Mbps
  • Automatic flow control

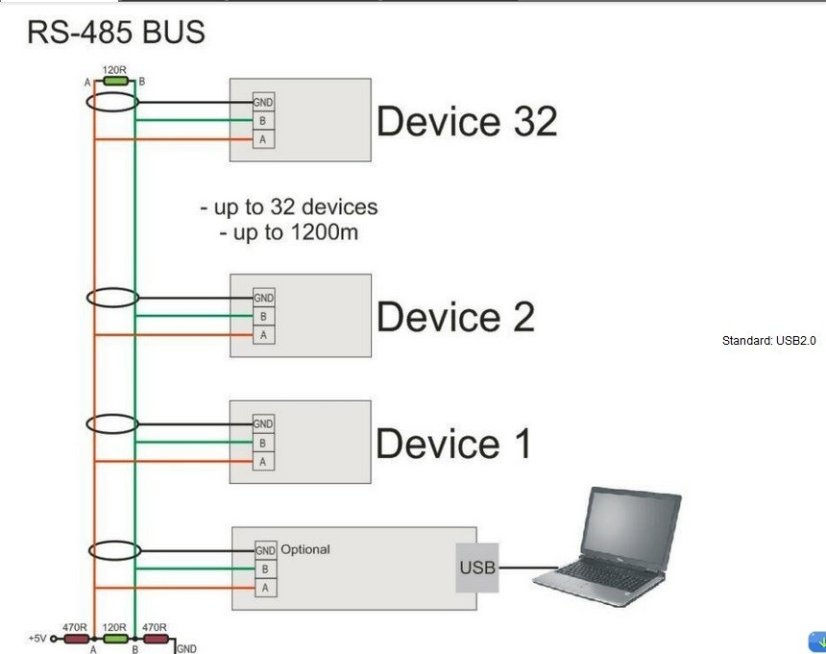

  • Connect up to 32 RS-485 devices
  • Fully compatible with USB 2.0, backward compatible with USB 1.1
  • Interface protection: TVS protection for USB
  • Operating temperature range: -40°C to +85°C
  • Communication distance: up to 1200m
  • Dimensions: 6.1 x 1.6 x 1.3 cm
  • Color: Black

Usage: USB to RS-485, DMX / DMX512,

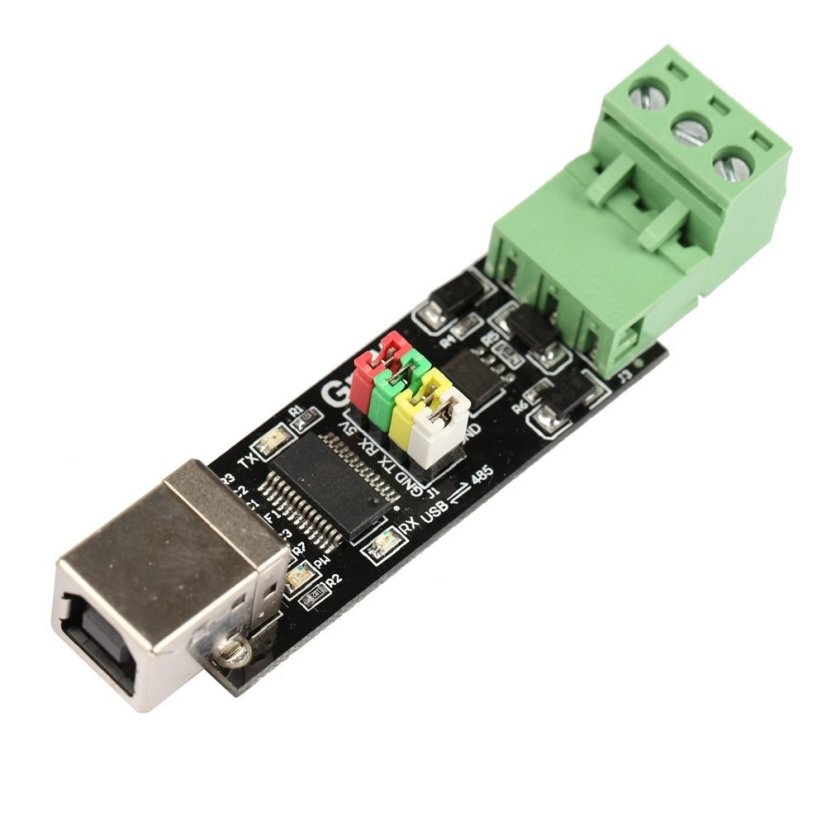

Electronic components on the board:

  • FTDI FT232RL (non-original) USB to serial UART chip
  • SP485EE - low power RS-485 transceiver

Drivers for FT232RL here:

http://www.ftdichip.com/Drivers/VCP.htm

Datasheet for FT232RL here:

http://www.ftdichip.com/Support/Documents/DataSheets/ICs/DS_FT232R.pdf

RS-485 to PC via USB B/USB B<-> RS485 adapter FT232RL

RS-485 to PC via USB/USB <-> RS485 adapter
