Warning: This is TTL, NOT 232. TTL is not RS232!

This USB2.0 Full Speed IC provides a compact bridge for basic UART interface. The device is UART capable of operating up to a speed of 3MBaud, with lower consumption (8mA). The FT230X includes the full features of the FT-X series and allows for quick and easy USB connection to the system via UART interface.

Features:

• Windows 7,8,10 - installation without the need for driver installation
• USB 2.0 Full Speed compatible
• FT230XS USB TTL CABLE
• RED-VCC(5v), BLACK-GND, BROWN-CTS, GREEN-RTS, ORANGE-TXD, YELLOW-RXD
• USB UART TTL 3.3v cable
• Fully integrated 2048 byte EEPROM for storing device descriptors and CBUS I/O configuration.
• Data transfer rate from 300 baud to 3Mbaud
• Support for UART interface for 7 or 8 data bits, 1 or 2 stop bits, and odd/even/mark/space/no parity
• True 3.3V CMOS drive output and TTL input.

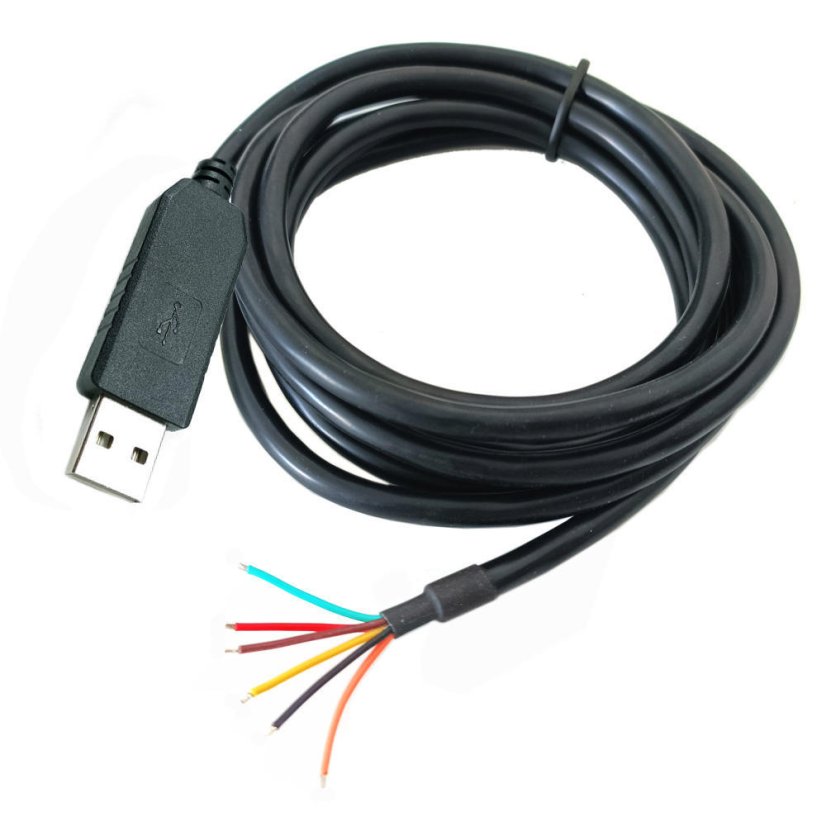

• Wire: 175 cm, 24AWG * 6 wires, PVC jacket, black, copper

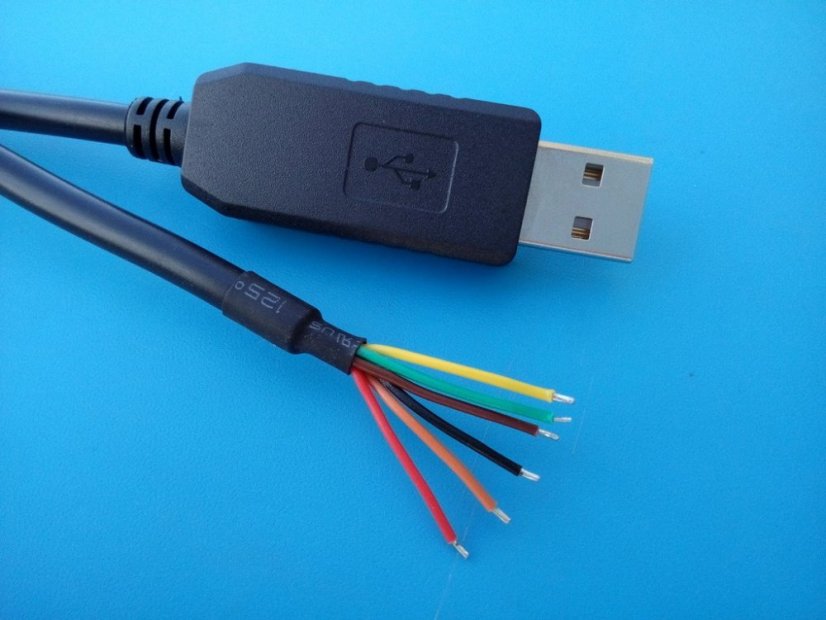

• Color-coded wire: Red-VCC(5V), Orange -TX, Yellow-RX, Black-GND, Green-RTS, Brown-CTS
• Supports Android, Windows 10, Windows 8, Windows 7, XP, 2000, Linux, Android, Mac OS
• Integrated 2048 byte EEPROM, supports Vendor ID rewriting, supports Mprog3.5
• Supports FTDI VCP driver and D2XX driver
• FCC, RoHS compliance

drivers: FTDI D2XX Drivers

USB driver installation made easy: Zadig
