MAX6675 module for K-type thermocouple

The MAX6675 is an ideal converter for K, J, N, T, and E type thermocouples. More
Manufacturer: NEVEN Product code: 10170 Shipping and payment
5,30 EUR incl. VAT
in stock (15 ks)
The MAX6675 is an ideal converter for K, J, N, T, and E type thermocouples. More
Manufacturer: NEVEN Product code: 10170 Shipping and payment

The MAX6675 is an ideal converter for K, J, N, T, and E type thermocouples.

Specifications:

  • Chip: MAX6675 (non-original)
  • Temperature measurement range: approximately 0 to 1024 °C (32 to 1875 °F)
  • Resolution: approximately 0.25 °C (0.45 °F)
  • Power supply voltage: 3.0 to 3.6 V
  • Operating current: 50 mA
  • Output: SPI digital signal
  • Mounting hole: 3 mm
  • Dimensions: approximately 25 mm x 15 mm (0.98 in x 0.59 in)

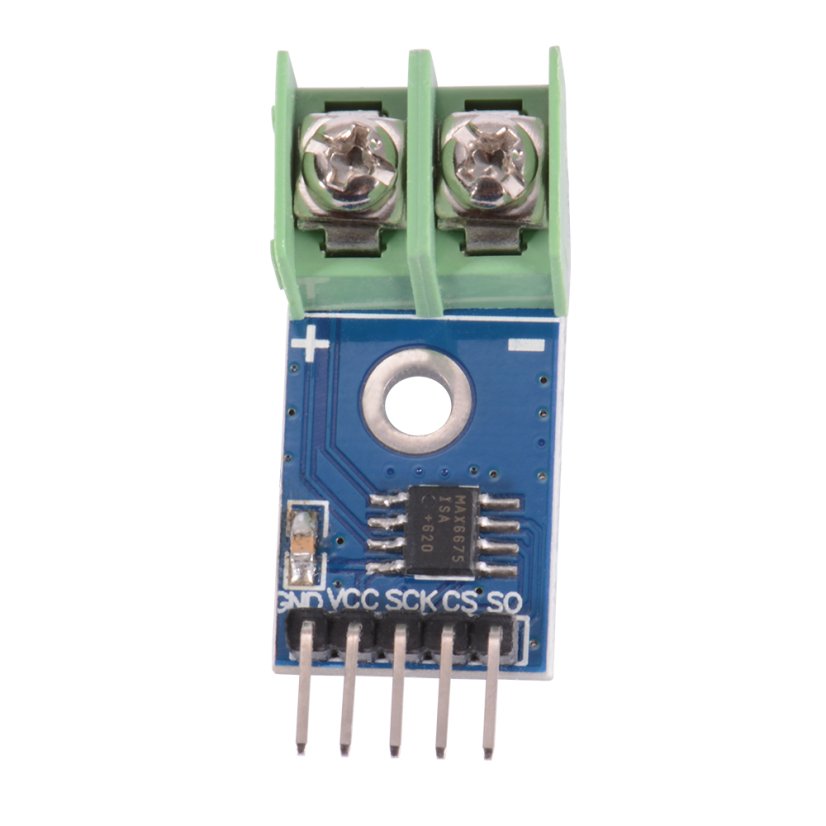

  • Module interface: GND VCC SCK CS SO

Thermocouple not included!

Instructions in English: http://navody.arduino-shop.cz/navody-k-produktum/termoclanek-s-driverem-max6675.html
