Quality RS485 to USB Converter for PC

The RS485 to USB 2.0 adapter is crafted with high quality, supporting data transmission rates of up to 115200bps and accommodates up to 32 nodes.

Standards Supported:

• USB v. 1.0, 1.1, 2.0
• TIA/EIA RS485

Additional Features:

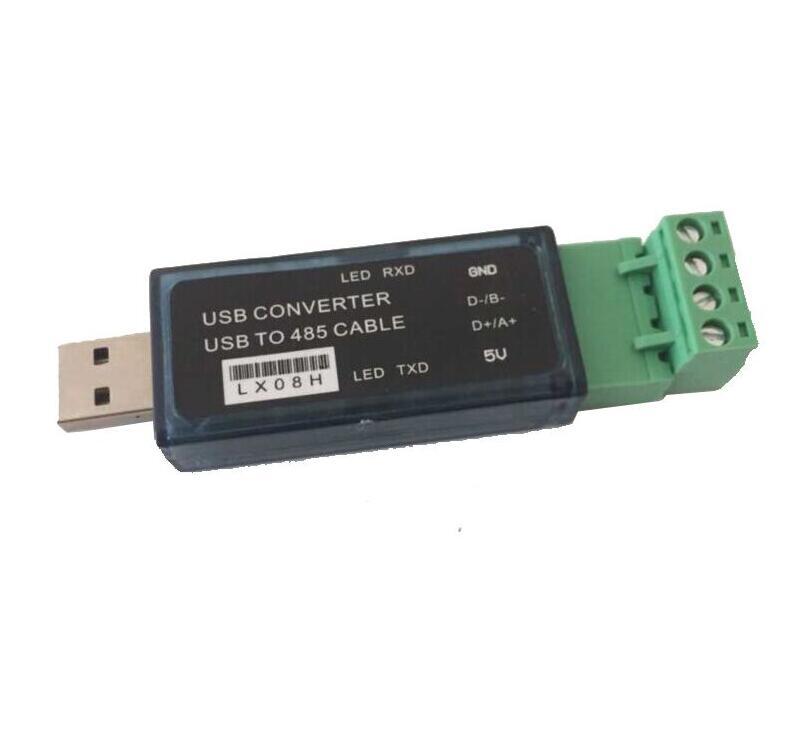

• Model: LX08H
• RS-485 Signals: T/R+, T/R-, GND
• Modes: Asynchronous, Point-to-Point, Point-to-Multipoint, 2-Wire (Half-Duplex), 4-Wire (Full-Duplex)
• Transmission Rates: 300 to 115200, automatic detection of signaling rate
• Load Capability: 32 devices in Point-to-Multipoint topology.
• Transmission Distance: RS485 1.2km (all rates), USB: 5 Meters
• Signaling Diagnostics: LEDs for POWER, TX, and RX
• Dimensions: 175x120x45 mm
• Working environment: -40C to 85C, RH 5%-95%
• Chipset: WCH CH340

OS Support:

• Windows XP / Vista / Server / WIN7 / WIN8 / WIN8.1 / WIN 10 (32 bit, 64 bit) fully compatible
• Linux
• Mac OS 10.X

Package Contents:

• USB to RS485 Converter with CH340 CHIP and Terminals

Drivers: https://learn.sparkfun.com/tutorials/how-to-install-ch340-drivers/all
