NanoPi 2 Fire with Cooler – Powerful ARM Board for IOT Projects

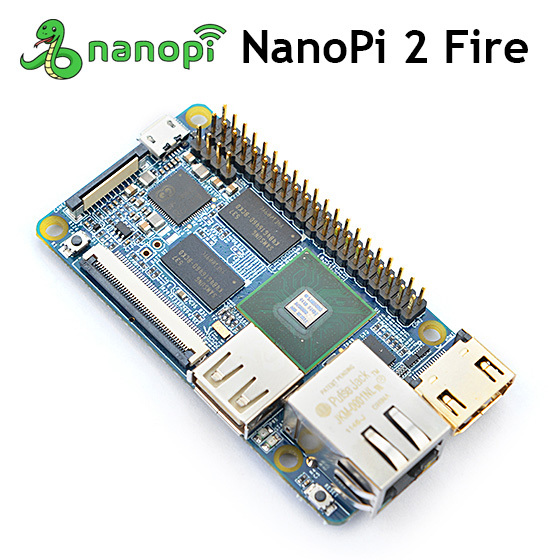

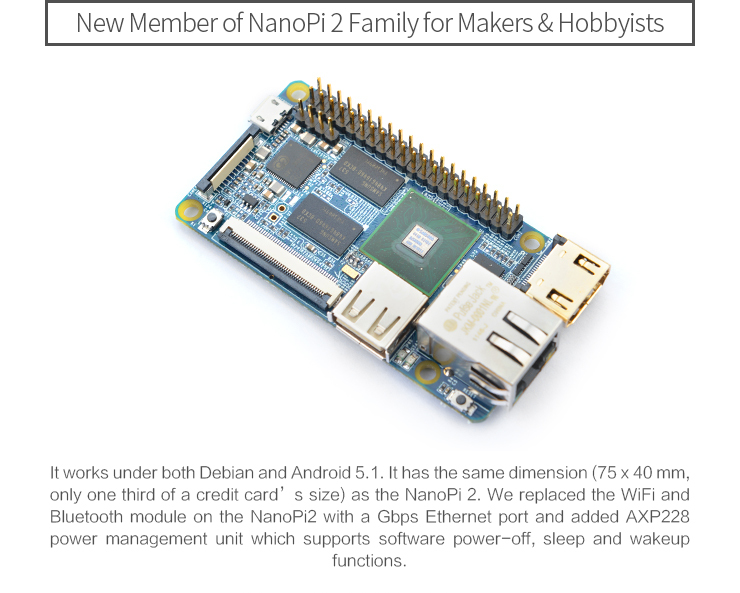

NanoPi 2 Fire is a high-performance ARM board developed by FriendlyARM for enthusiasts, makers, and hackers for their IOT projects. It is equipped with a Samsung Cortex-A9 Quad Core S5P4418@1.4GHz processor, 1GB DDR3 RAM, and a Gbps Ethernet port. It supports running Android and Debian operating systems from a TF card. It also includes HDMI and LCD interfaces. Due to the Raspberry Pi GPIO connector, it is compatible with external Raspberry Pi GPIO modules and Arduino shields. The board dimensions are 75 x 40 mm.

All NanoPi devices come with a cooling assembly, which is included in the price.

Specifications:

• Model: NanoPi 2 Fire
• CPU: S5P4418, 1.4GHz
• RAM: 1GB DDR3
• Connection: Gbps Ethernet port
• PMU Power Management: AXP228, supports software shutdown, sleep, and wake
• USB 2.0 Type A x 1
• Debug Serial Port/UART0 x 1
• microSD Slot x 1
• microUSB x 1: for data transfer and power supply
• LCD Interface: 0.5 mm pitch SMT FPC seat, for full-color LCD (RGB: 8-8-8)
• HDMI: HDMI 1.4A, Type-A, 1080P60
• DVP Camera interface: 0.5mm spacing FPC socket. Includes ITU-R BT 601/656 8-bit, I2C, and IO
• GPIO: 2.54mm spacing 40pin, compatible with Raspberry Pi GPIO. Includes UART, SPI, I2C, PWM, IO
• etc.
• Buttons: Power button x 1, Reset button x 1
• LED: Power indicator LED x 1, system LED x 1
• PCB Size: 75 x 40mm
• Power Supply: DC 5V/2A

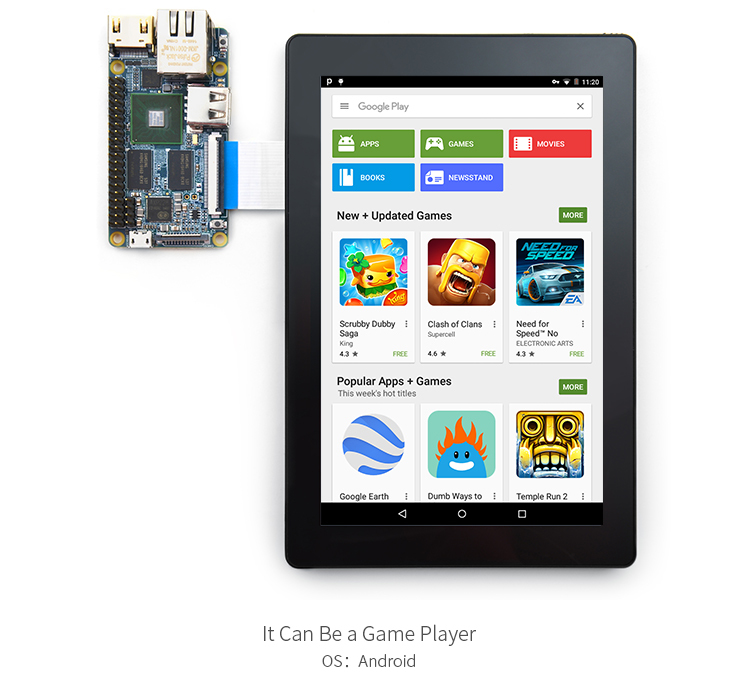

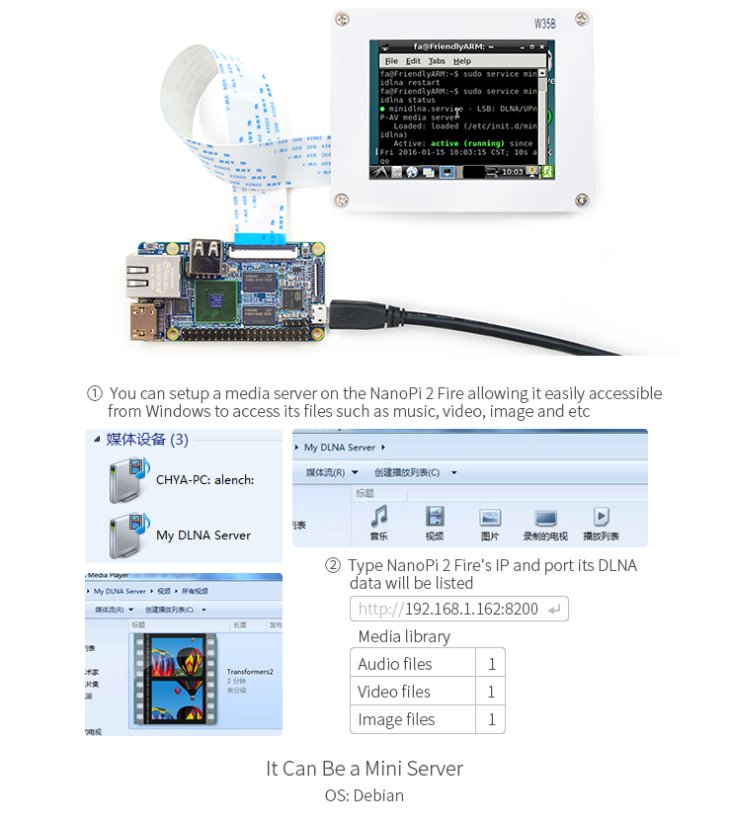

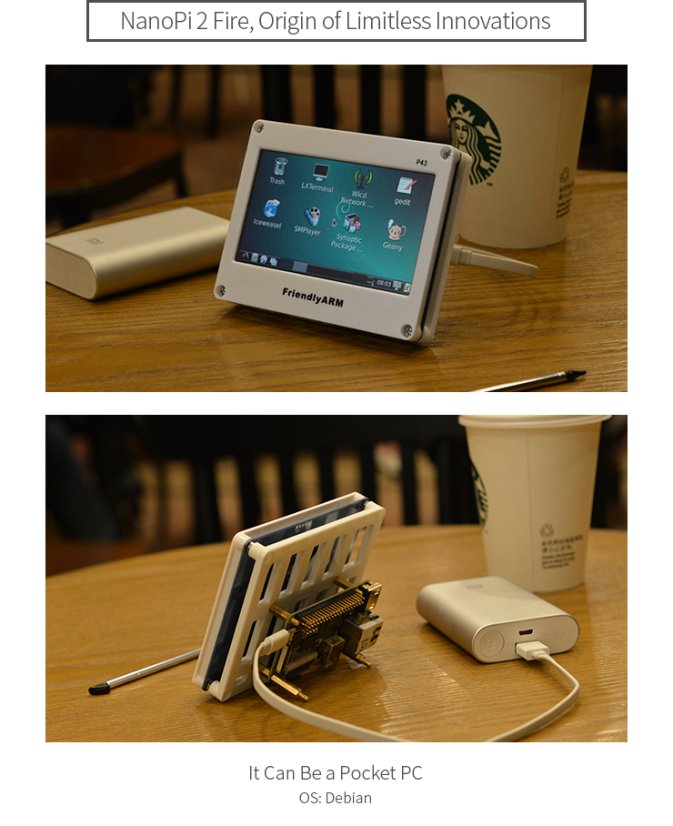

• OS: Android, Debian

Package Contents:

1x NanoPi 2 Fire

1x cooler

This open-source board is supplied without a manual and support. All necessary information can be found on the FriendlyARM wiki page.

Related Resources

Wiki:http://wiki.friendlyarm.com/wiki/index.php/NanoPi_2_Fire

Image Folder:S5P4418

Source Code:https://github.com/friendlyarm
