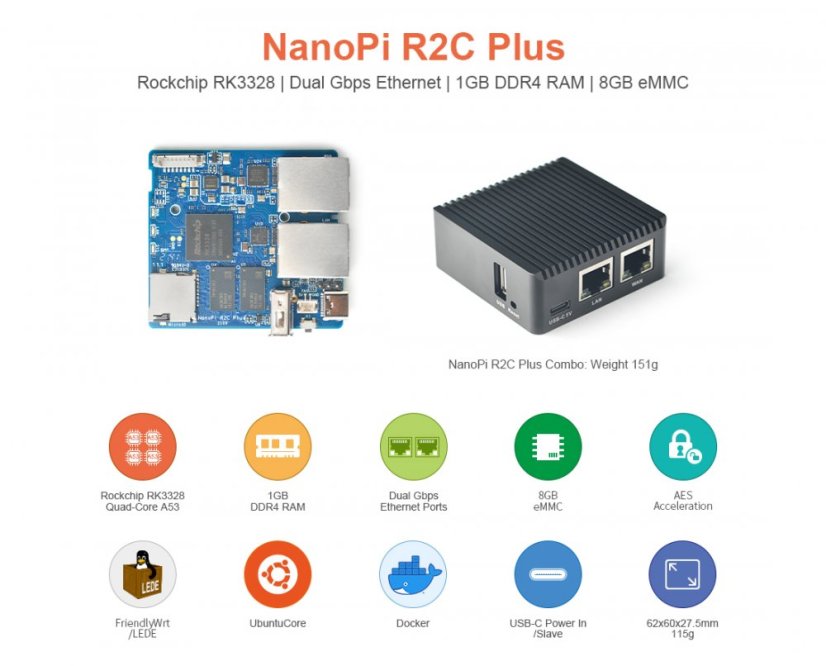

NanoPi R2C Plus - Powerful Development Kit with 8GB Storage

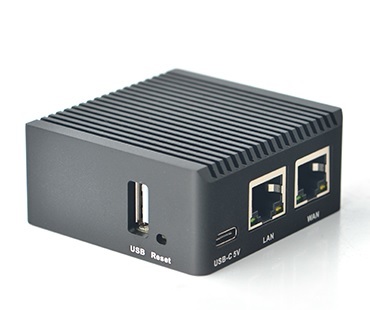

NanoPi R2C Plus

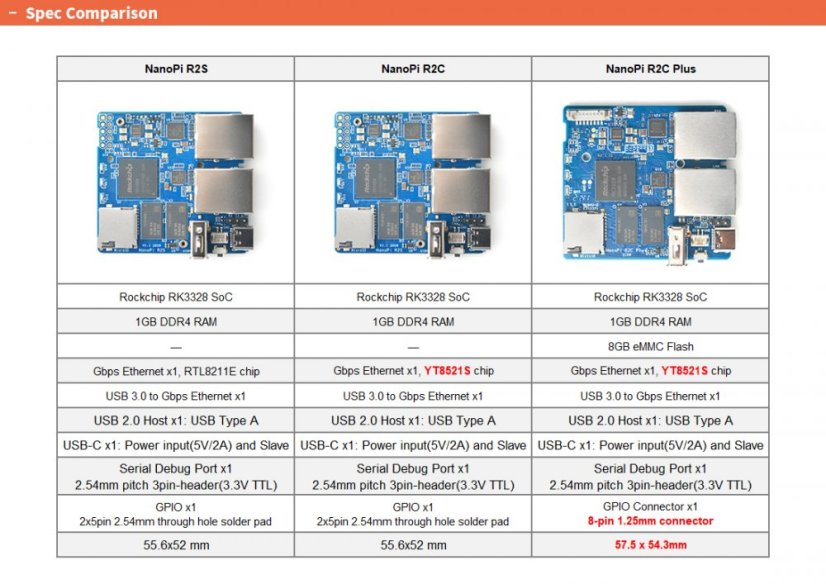

The NanoPi R2C Plus is a version of the NanoPi R2C dual Gigabit Ethernet SBC powered by the Rockchip RK3328 processor, featuring 8GB eMMC flash storage. The 8-pin 2.54mm I/O pin connector replaces the previous 8-pin 1.25mm pin connector. It's suitable for developing IoT applications, NAS solutions, smart home gateways, and more. It supports OpenWrt, Ubuntu Core, and Docker CE.

• Model: NanoPi R2C Plus

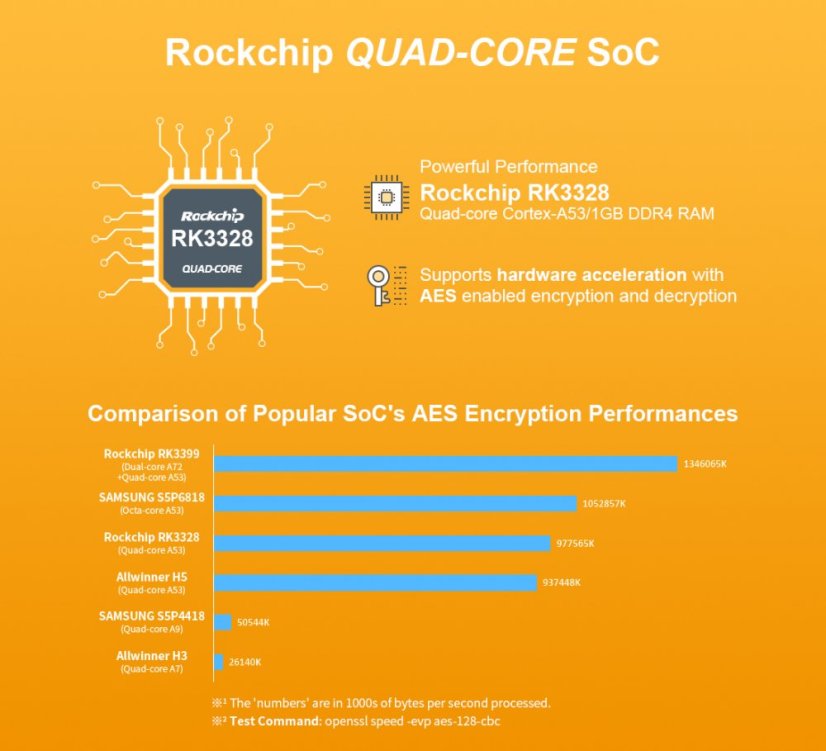

• SoC – Rockchip RK3328 quad-core Cortex-A53 @ 1.5 GHz with Arm Mali-450MP2
• RAM – 1GB DDR4 RAM
• Storage – 8GB eMMC, MicroSD Slot
• Configuration
  • 1x Gigabit Ethernet (WAN) up to 941 Mbps (measured), YT8521S chip
  • 1x Gigabit Ethernet (LAN) up to 941 Mbps (measured) via Realtek RTL8153 USB 3.0 to Ethernet controller

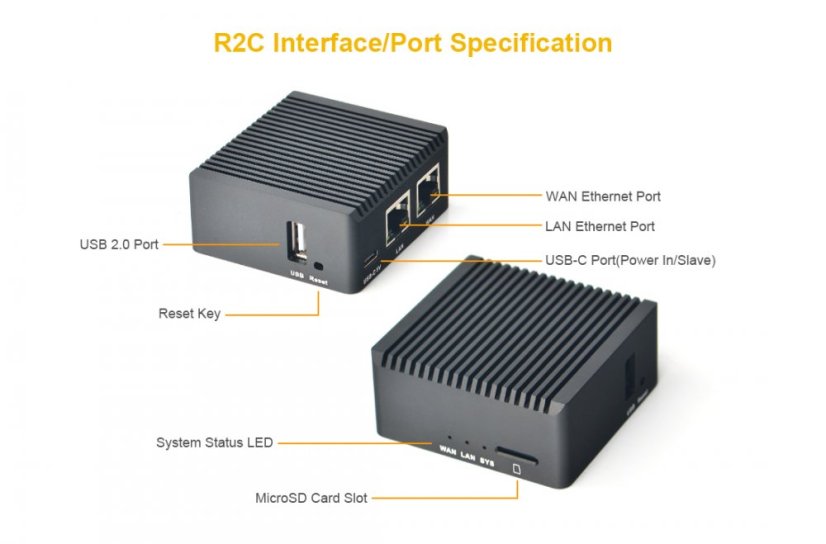

• USB – 1x USB Type-A host port, 1x USB Type-C port (power + slave)
• Debugging – 3-pin 2.54mm pitch header for serial console
• Expansion – 8-pin GPIO header with GPIO, I2C, UART, 5V, and GND
• Miscellaneous – 3x LEDs (WAN, LAN, SYS), K1 reset button, fan connector
• Power – 5VDC/3A via micro USB port

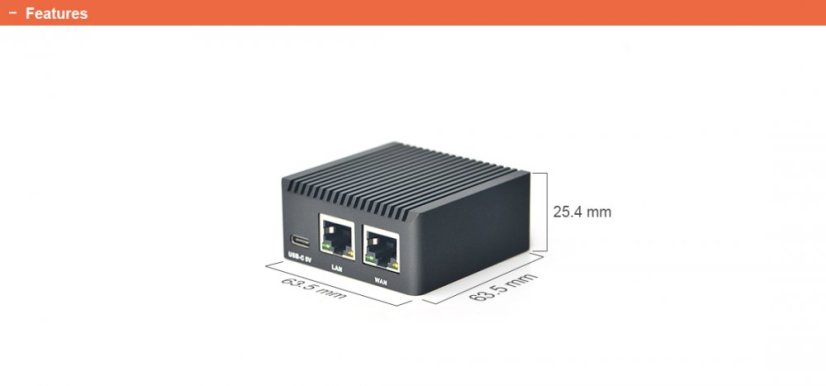

• Dimensions – 57.5 x 54.3mm (2.26 x 2.14 inches)
• Temperature Range – -20℃ to 70℃
